HDMI Extender over netwerk
Standards and certification
- HDCP 1.2
- TCP/IP
- DVI 1.0
- CTS 1.2
- CE
- FCC
- RoHS2
General
- Source-to-switch range: up to 100 m (330 ft.)
- Switch-to-display range: up to 100 m (330 ft.)
Combined distance source-to-switch-to-display 120 m (396 ft.)
- Cat6 cable: 1080p at 120 m (396 ft.)
- Cat6 cable: 720p at 160 m (528 ft.)
- Cat6 cable: 480p at 200 m (660 ft.)
- Cat5e cable: 1080p at 100 m (330 ft.)
- Cat5e cable: 720p at 140 m (462 ft.)
- Cat5e cable: 480p at 180 m (594 ft.)
- Power: 5 VDC / 2 A (cable: 1.4 m [4.5 ft.])
- LED indicator
Connections
- One HDMI female, 19-pin (transmitter/receiver)
- One RJ45 female (transmitter/receiver)
- One 5 VDC power female, OD 5.5 mm / ID 2.1 mm (transmitter/receiver)
- Two 3.5 mm IR female (transmitter/receiver)
Signal Input/Output
- Input video signal: 0.5 – 1.0 V p-p
- Input DDC signal: 5 V p-p (TTL)
- Maximum single-link range: 1.65 Gbps and 1080p resolution
- Output video: HDCP 1.2, DVI 1.0
- Frequency: 1.65 Gbps / 165 MHz
Video Resolutions
- Standard-definition TV, High-Definition TV
- SDTV/HDTV/UHDTV: 480i/576i/480p/576p/720p/1080i/1080p
Physical
- Dimensions: 100 x 59 x 25 mm (3.9 x 2.3 x 1 in.)
- Weight: 0.66 kg (1.45 lbs.)
- Housing: metal
Operating Environment
- Operation Temperature: 0 – 40°C (32 – 104°F)
- Storage Temperature: -20 – 60°C (-4 – 140°F)
- Humidity (noncondensing): 20 – 96%
Package Contents

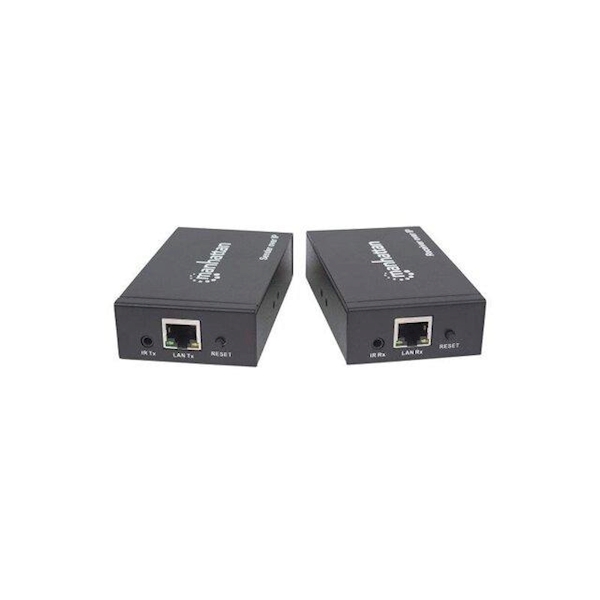

- 1080p HDMI over IP Extender Splitter Kit (receiver & transmitter modules)
- Power adapter (two units)
- IR blaster and receiver (one unit)
- Wall mounting hardware (two units each)
- Quick Instruction Guide
Note: This product is not compatible with Powerline adapters.
