DS-2CD3956G2-ISU(1.05MM)

Prijs per stuk

Inloggen

Aantal

-

+

Belangrijke Kenmerken

Ondersteunt Hikvision Embedded Open Platform (HEOP) en het importeren van applicaties van derden
Ondersteunt 1,5 TOPS rekenkracht, 60 MB systeemgeheugen, 400 MB smart RAM en 2 GB eMMC-opslag voor het delen van bronnen
Efficiënte H.265+ compressietechnologie
180° fisheye-weergave
Beeldvorming van hoge kwaliteit met een resolutie van 5 MP
Maximaal 4 liveweergavemodi
Helder beeld bij sterk tegenlicht dankzij 120 dB True WDR-technologie

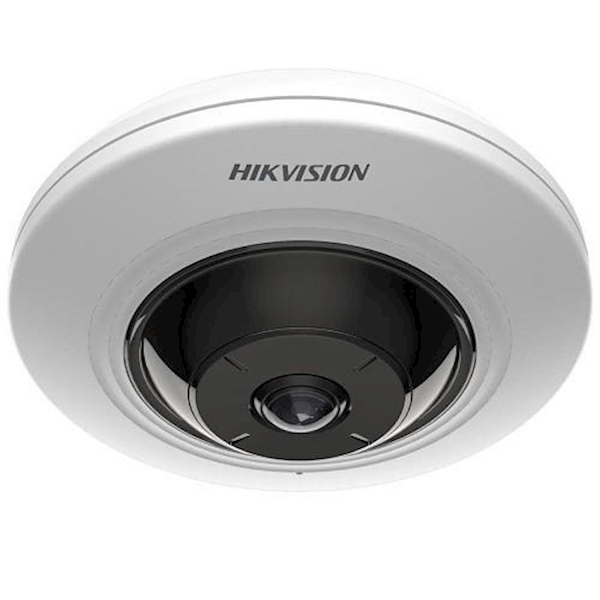

Hikvision AcuSense Fisheye camera 5MP, 1.05mm

Camera

Lens

Lens TypeFixed focal lens, 1.05 mm
Focal Length & FOV1.05 mm, horizional FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
Lens MountM12
Iris TypeFixed
ApertureF2.25
Depth Of Field0.1 m to ∞

DORI

Illuminator

HEOP

Video

Main Stream
50 Hz: 25 fps/60 Hz: 30 fps:

Fisheye View:

2560 × 1920, 2048 × 1536, 1280 × 960

180 Panorama View:

2048 × 1152, 1280 × 720

180 Dual Channel Panorama View:

4096 × 576,2048 × 288

4PTZ View:

camera 01/camera 02/camera 03/camera 04: 1200 × 900

Fisheye + 3PTZ View:

camera 01: 2048 × 1536, 1280 × 960

camera 02/camera 03/camera 04: 1200 × 900
Sub-Stream
50 Hz: 25 fps/60 Hz: 30 fps:

Fisheye View:

640 × 480, 640 × 360

180 Panorama View:

640 × 480, 640 × 360

Fisheye + 3PTZ View:

camera 01: 640 × 480, 640 × 360
Video Compression
Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)5 fixed regions for main stream and sub-stream
Target CroppingYes

Fisheye Display

Audio

Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC, HLC, 3D DNR
SNR≥ 52 dB

Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Built-In Microphone-U: Yes
Audio
1 input(s) (line in), four-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output(s) (line out), four-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm1 input, 1 output (max. 12 VDC, 30 mA)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes

Event

Basic EventMotion detection,video tampering alarm,exception
LinkageUpload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Deep Learning Function

People Counting

Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),

Supports real-time uploading and uploading by statistic cycle
Queue ManagementSupports up to 4 detection regions, and independent arming schedule and linkage method
Heat Map

Yes

General

Power
12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W
Dimension

Ø119.9 mm × 41.2 mm (Ø4.7 × 1.6\")"
Package Dimension150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
WeightApprox. 320 g (0.7 lb.)
With Package WeightApprox. 510 g (1.1 lb.)
General FunctionAnti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Storage Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

DS-2CD3956G2-ISU.pdf
