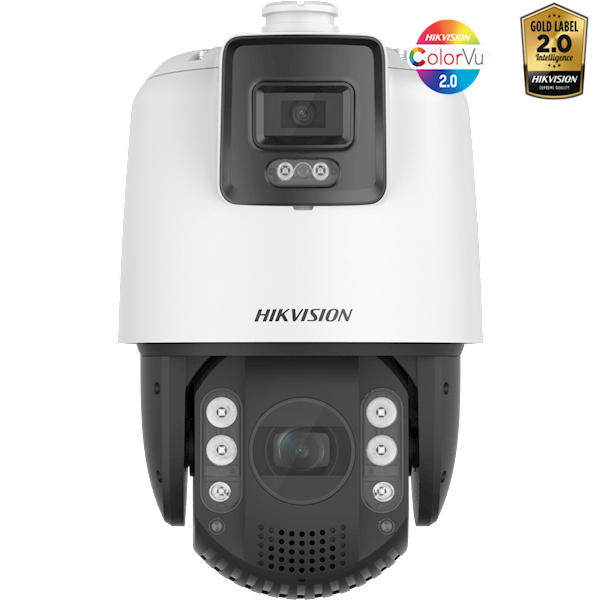

DS-2SE7C432MW-AEB 14F1 P3, TandemVu PTZ 32x Zoom

Prijs per stuk

Inloggen

Opties

Opties
	Pendant
	Paalbeugel
	Muurbeugel

Kabel

Opties
	Cat 5, 0.45mm, 305m
	Cat 6, 0.565mm, 305m

SD Kaart

Opties
	32GB WD Purple
	64GB WD Purple
	128GB WD Purple
	256GB WD Purple

UTP RJ45 Connectoren

Opties
	Cat6 connectoren 90-pack
	Cat5 connectoren 100-pack
	Cat 5E Connector solide kern per 25 stuks

Aantal

Belangrijke kenmerken

Legt tegelijkertijd een groot gebied en geweldige details vast
Hoge beeldkwaliteit met een resolutie van 4 MP
Uitstekende prestaties bij weinig licht met powered-by-DarkFighter-technologie
Beveiligt een groot gebied met 32× optische zoom en 16× digitale zoom
Ondersteunt WDR, HLC, BLC, 3D DNR, defog, regionale belichting, regionale focus, snelle focus
Uitgebreid nachtzicht met een IR-afstand tot 200 m
Ondersteunt 24 VAC en Hi-PoE
Actief stroboscooplicht en audioalarm om indringers te waarschuwen

Kenmerken
Technische specificaties
Documentatie

TandemView PTZ 32x Zoom

Camera

Image Sensor[Bullet channel]: 1/1.8" Progressive Scan CMOS; [PTZ channel]: 1/1.8" progressive scan CMOS
Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Slow Shutteryes
Focussemi-auto;manual;auto
Day & NightICR
Zoom[PTZ channel] 32 × optical, 16 × digital
Day/Night Switchday, night, auto, scheduled-switch
BLCyes
WDR120 dB WDR
HLCyes
3D DNRyes
Defogyes
EISyes
Regional Exposureyes
Regional Focusyes
Image Settingssaturation;brightness;contrast;sharpness
White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
SNR>52dB
General Functionmirror, password protection, watermark, IP address filter
Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lens

Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
Zoom Speed[PTZ channel]: approx. 5.6 s

FOV

[Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°
[PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)
Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.5

Illuminator

Supplement Light Type[Bullet channel] white light, [PTZ channel] IR
Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
Smart Supplement LightYes

PTZ

Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speed pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Zoom yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-Off Memory yes
Park Action preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioning yes
PTZ Status Display yes
Preset Freezingyes
Scheduled Task preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Exception Detection IP address conflict, HDD full, illegal login, HDD error, network disconnected

Video

Stream Typemain stream;sub-stream;third stream
Main Stream
[Bullet channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

[PTZ channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
[Bullet channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
[Bullet channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265;H.264;MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROImain stream, sub-stream and third stream respectively support eight fixed areas

Audio

Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
Audio Bit Rate32 to 192 Kbps (MP2L2)
Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filteringyes

Smart Features

Smart RecordANR;Dual-VCA
Warning And Alertwhite light and audible warning

Network

Network StorageNAS (NFS,SMB/ CIFS), ANR
ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
Simultaneous Live View20
User/Host32
Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
ClientiVMS-4200;Hik-Connect
Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+


Image Parameters SwitchYes
Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Interface

Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Alarm Input2 alarm inputs
Alarm Output1 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω

Event

Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Alarm Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking[PTZ channel] yes
Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn

Deep Learning Function

Face Capture[Bullet channel] no,[PTZ channel] yes

General

Power24 VAC, Hi-PoE
Power Consumption And Current Max. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
Operating Conditions-30? to 65? (-22°F to 149°F) ;humidity lower than 90%RH
Reset yes
Demist Demist by heating the glass
Material ADC12
Dimensions Ø 220 mm × 382.1 mm (Ø 8.66" × 15.04")
Approx. 6 kg (13.23 lb.)

Approval
Protection IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection

Datasheet-of-DS-2SE7C432MW-AEB14F1P3_V5.7.11_20220415.pdf
