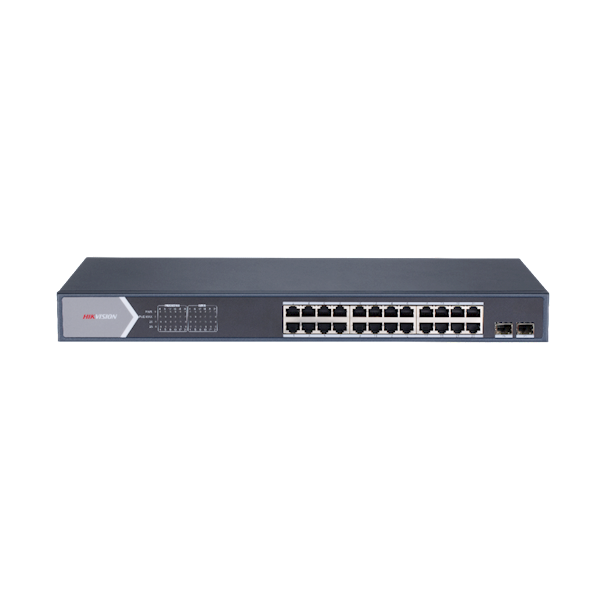

Hikvision 26 Poorts, 24x PoE, Gigabit smart managed switch
Network Parameters
- Port Number24 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Working Mode
Standard mode (default)
Extend mode
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
- Forwarding ModeStore-and-forward switching
- MAC Address Table8 K
- Internal Cache4.1 Mbits
- Switching Capacity52 Gbps
- Packet Forwarding Rate36.688 Mpps
PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPorts 1 to 24
- Max. Port Power30 W
- PoE Power Budget370 W
Software Function
General
- Dimension (W × H × D)440 mm × 221 mm × 44 mm (17.32” × 8.7” × 1.73”)
- Storage Temperature-40°C to 85°C (-40°F to 185°F)
- Gross Weight3.535 kg (7.79 lb)
- Net Weight2.975 kg (6.56 lb)
- Power Consumption In Idle30 W
- ShellMetal material
- Operating Temperature-10°C to 55°C (14°F to 131°F)
- Operating Humidity5% to 95% (no condensation)
- Power Supply100 to 240 VAC, 50/60 Hz, Max. 6.3 A
- Max. Power Consumption400 W
- Relative Humidity5% to 95% (no condensation)
Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
