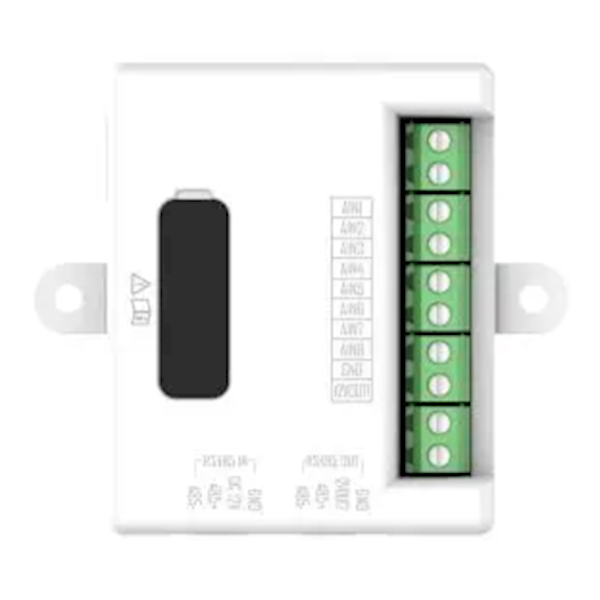

Modular Door Station(Main Module)
- System Parameters
- Operating SystemEmbedded operation system
- CPUEmbedded MCU Processor
- Device Interfaces
- Alarm Input8
- DIP Switch1, 8 bit
- Modular Connection Interface(485+12V DC)2
- Power Supply OutputMax to 4 W, 12 VDC
- General
- Power Consumption≤ 6 W (full load power consumption of 20-module cascade)
- InstallationSurface mounting
- Weight
With package: 100 g
Without package: 32.2 g
- Working Temperature-30° C to 60° C (-22° F to 140° F)
- Working Humidity10% to 90%
- Dimensions62.2 mm × 55 mm × 18 mm (2.45" × 2.17" × 0.71")
