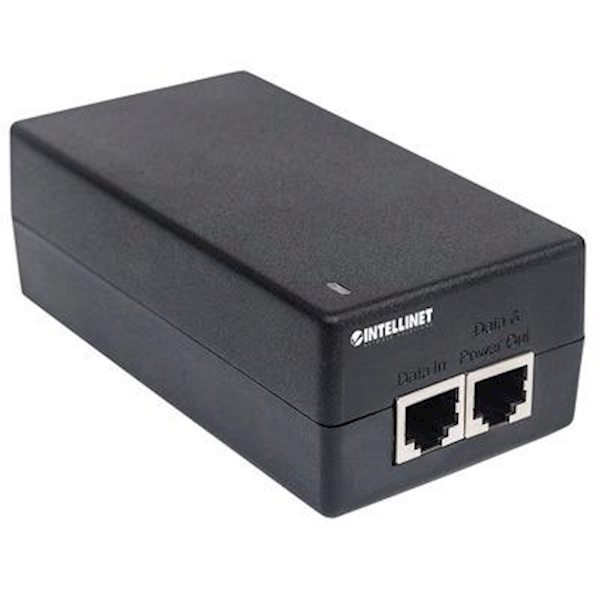

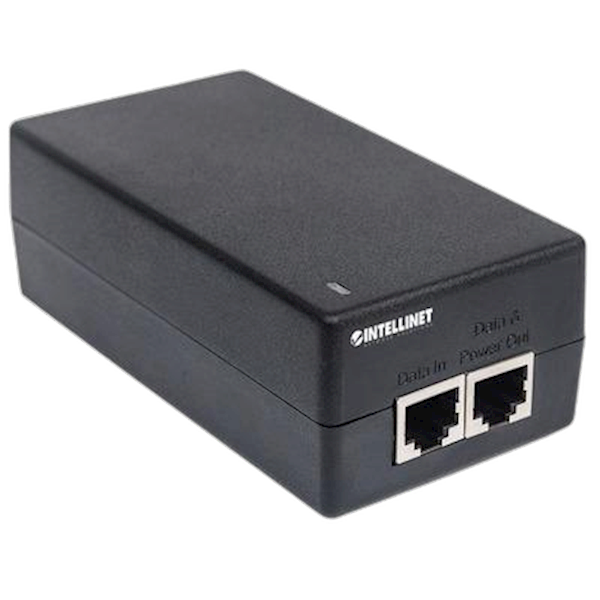

Gigabit Ultra PoE Injector, 1 x 60 W Port, IEEE 802.3at/af
Standards
- IEEE 802.3af (Power over Ethernet)
- IEEE 802.3at (High-Power PoE+ Power over Ethernet)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
Media Support
Media support:
- 100Base-TX Cat5 UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin
Ports
- One RJ45 10/100/1000 Mbps input port
- One RJ45 10/100/1000 Mbps data and power output port
Protection Functions
- Short circuit protection
- Over current protection
- Over voltage protection
PoE pinout
- Pin 1: DC (-)
- Pin 2: DC (-)
- Pin 3: DC (+)
- Pin 4: DC (+)
- Pin 5: DC (+)
- Pin 6: DC (+)
- Pin 7: DC (-)
- Pin 8: DC (-)
Certifications
FCC Class A, CE, RoHS
LED
Power and PoE LED
Power
- Input: 100 – 240 V AC, 50 – 60 Hz
- Output: 52.0 V DC, 1.15 A
- Power consumption: 60.0 watts (maximum)
Enviromental- Plastic housing- Dimensions: 146 x 62 x 40 mm- Weight: 0.22 kg - Operating temperature: 0 – 40°C- Operating humidity: 10 – 90% RH, non-condensing- Storage temperature: -10 – 70°C Package Contents- Gigabit Ultra PoE Injector- Power cable- Instructions
