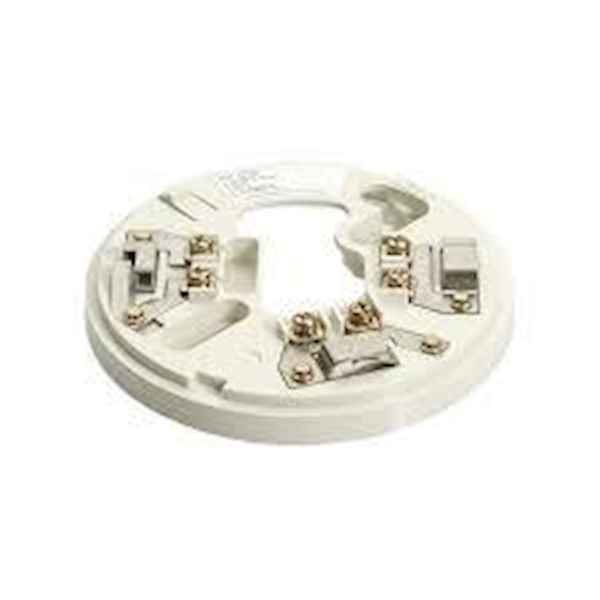

Conventional Marine Approved Detector Mounting Base
Specificaties
Bedrijfsspanning
17 - 41 VDC (nominaal 24 VDC)
Ruststroom
60 µA
Stroom verbruikt door isolator bij foutconditie
< 4 mA
Maximale stroomverbruik van externe LED
10 mA (beperkt door aangesloten sensor)
Maximale continue stroom
1 A
Maximaal aantal per lus
1271
Omgevingstemperatuurbereik
-10 °C tot +50 °C
Relatieve luchtvochtigheid
10% tot 95% RH (bij 40 °C)
Kleur en behuizingsmateriaal
Wit ABS
Bevestigingscentra
48 mm tot 74 mm
Maximale draaddikte
2,5 mm²/terminal
Afmetingen (mm)
100 (diameter) x 13,7 (hoogte)
Gewicht
79gr.
