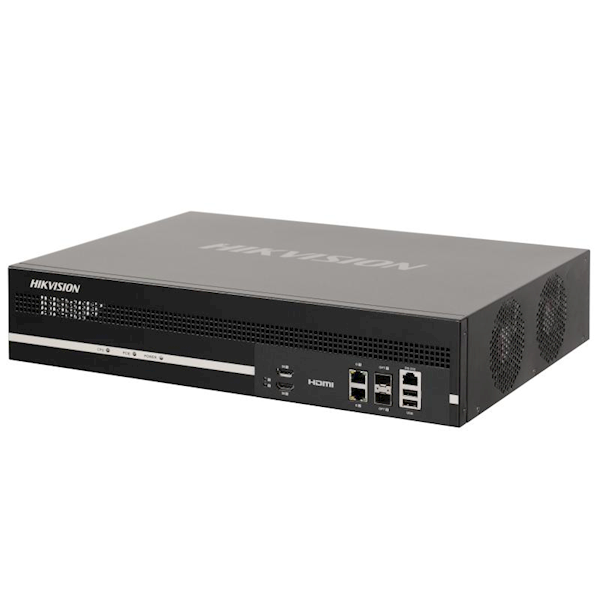

Hikvision 10 kanaals decoder
Product Model
- Product ModelDS-6910UDI(C)
Interface
- Alarm In8-ch alarm in
- Alarm Out8-ch alarm out
- Serial InterfaceRS-232 (RJ45) × 1, RS-485 × 1
- USB InterfaceUSB 2.0 × 2
- Network Interface
RJ45 × 2, 10 M/100 M/1000 Mbps self-adaptive Ethernet interface
Optic Interface × 2 100 base-FX/1000 base-X
Supports optoelectronic self-adaptation
Video Wall
- Video Walls1
- Video Wall Size≤ 10
- Layers Per Screen1080p × 3 or 4K × 1.5
- LayersLayers Per Screen × Output Interface(s)
- Split Windowyes
- Scenes64
- Scene Auto-Switch Delay3 s
- Split Screen1, 2, 4, 6, 8, 9, 12, 16, 25
- Background ImagesBackground color only
- SubtitlesN/A (optional to support)
- Delay Of Displaying Local Signal Source On Video Wall120 ms
- Delay Of Displaying Decoded Signal Source On Video Wall120 ms
- Auto-Switching PlansSupport 256 auto-switching plans
General
Audio Input
- Audio Input Interfaces2
- Audio Input Interface Typeembedded HDMI audio input
Video Input
- Video Input Resolution3840 × 2160@30 Hz, 1920 × 1080@50 Hz, 1920 × 1080@60 Hz, 1280 × 720@50/60 Hz
- Video Input Interface TypeHDMI 1.4
- Video Input Interface(S)2
- Max. Input Resolution4K (for odd interface only)
Video Encoding
- Video Encoding Channel2
- Video Encoding Format
H.265/H.264
Default H.264
- Video Encoding Performance
1-ch: 4K 30
2-ch: 1080p 60
Audio Encoding
- Audio Encoding FormatG722.1, G711U, G711A, AAC
Video Output
- Max. Output Resolution4K
- Video Output Interface TypeHDMI 1.4
- Video Output Interface(S)10
- Video Output Resolution3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz
- Video Output Resolution (BNC)PAL: 704 × 576, NTSC: 704 × 480
- Video Output Interface (BNC)3-ch: DB15 to BNC
Video Decoding
- Video Decoding FormatH.264, H.265, SmartH.264, SmartH.265, MJPEG
- Video Decoding ResolutionUp to 32 MP
- Video Decoding Channel(S)160
- Video Decoding CapabilitySupport 5-ch 32 MP/24 MP/10-ch 12 MP/20-ch 8 MP/25-ch 6 MP/40-ch 4 MP/80-ch 1080p/160-ch 720p and below real-time decoding(4 outputs in a group, sharing decoding capabilities)
Audio Output
- Audio Output Interface Typeembedded HDMI audio output or DB15 to BNC independent audio output
- Audio Output Interface(S)10
Encoding And Decoding/Audio Decoding
- Audio Decoding FormatG711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC
