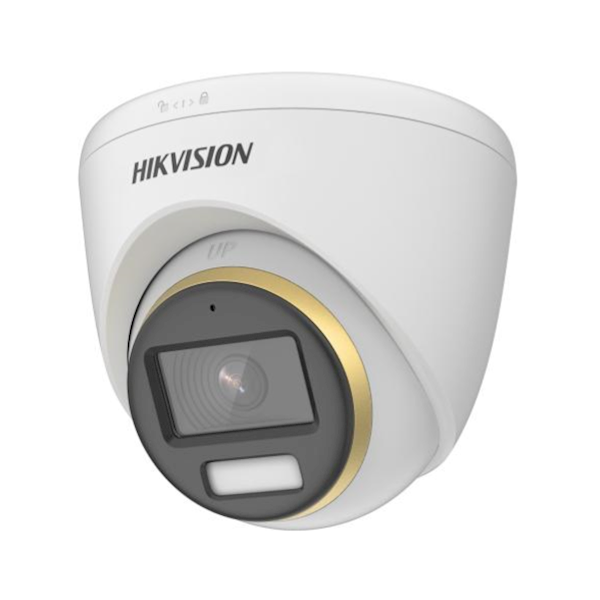

2 MP ColorVu Audio Fixed Turret Camera
Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night24/7 Color Imaging
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal SystemPAL/NTSC
- Slow ShutterMax. 16 times
- Light AlarmSolid Light Alarm (White Light)
Lens
- Lens Type2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
- Lens MountM12
Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
- Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, AGC
- Frame Rate
TVI: 1080p @ 25 fps/30 fps
CVI: 1080p @ 25 fps/30 fps
AHD: 1080p @ 25 fps/30 fps
CVBS: PAL/NTSC
- Day/Night ModeColor
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementWDR, BLC, HLC, Global, HLS
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR/2D DNR
- White BalanceAuto/Manual
Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- Built-In MicrophoneYes
Event
- Motion Detection4 programmable motion areas
General
- MaterialMain body: Metal, Enclosure: Plastic
- DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")
- WeightApprox. 336 g (0.74 lb.)
- Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power
12 VDC ± 25%, Max. 5.7 W
Approval
