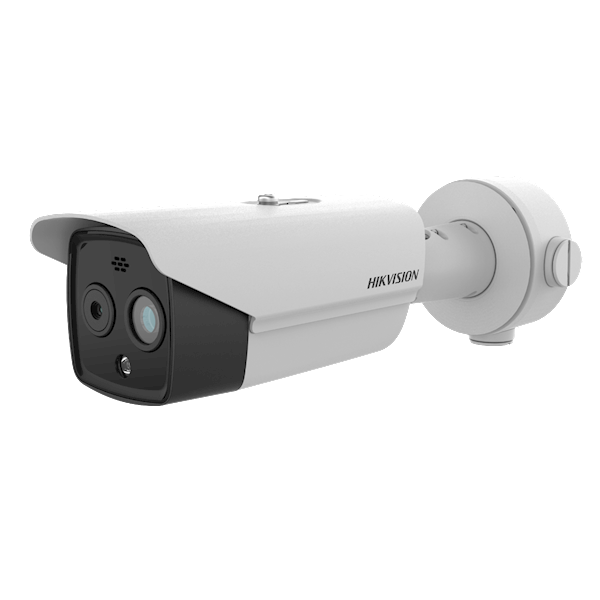

Thermal & Optical Bi-spectrum Network Bullet Camera
Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolutie 256 × 192
- Pixel Pitch 12 μm
- Spectral Range8 μm to 14 μm
- NETD< 40 mK (25°C, F1.0)
- Focal Length3.6 mm
- IFOV3.33 mrad
- Field Of View 50.0°(H) × 37.3°(V)
- Min. Focusing Distance 0.5 m
- ApertureF1.0
- Digital Zoom×2, ×4
Optical Module
- Image Sensor1/2.7" Progressive Scan CMOS
- Resolutie2688 × 1520
- Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
- Shutter Speed1 s to 1/100,000 s
- Focal Length4.3 mm
- Field Of View84.0°(H) × 43.1°(V)
- Aperture (Range)F1.6
- WDR120 dB
Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
Illuminator
- IR AfstandUp to 30 m
- IR Intensity And AngleAutomatically adjusted
Audible And Visual Alarm
- White Light RangeUp to 30 m
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
Audio Alarm
- Yes, for two types of audible alarm (VCA and Temperature Exception)
- 2 preset voice alerts (one for each)
- 6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 150°C (-4°F to 302°F)
- Temperature Accuracy± 8°C (± 14.4°F)
Video And Audio
- Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
- Video Compressie
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
Web Browser
- Live view (plug-in allowed) : Internet Explorer 11
- Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
- Local service : Chrome 57.0 +, Firefox 52.0 +
Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Audio Input
- 1, 3.5 mm Mic in/Line in interface
- Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
Communication Interface
- 1, RJ45 10 M/100 M Self-adaptive Ethernet interface
- 1, RS-485 interface (half duplex)
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
General
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Stroomvoorziening
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
- Power Consumption
24 VAC ± 25%: 0.8 A, Max.8.5 W
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
Beschermingsniveau
- IP67 Standard
- IVS 4000V lightning protection, surge protection, voltage transient protection
- Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
- 1550 g (3.41 lb)
