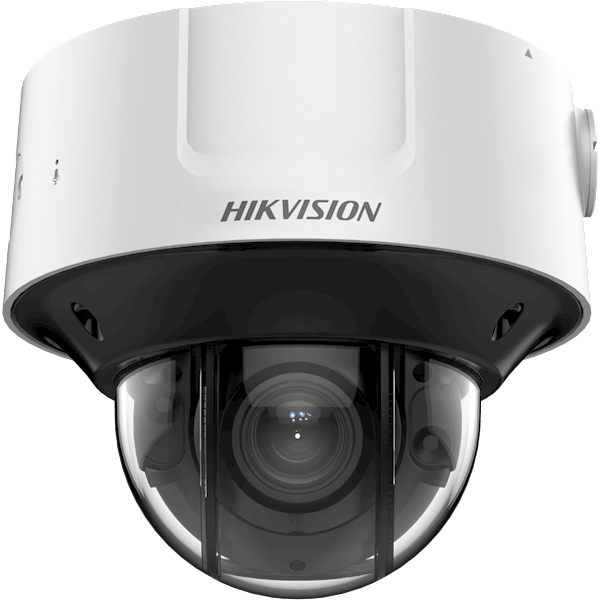

Hikvision Special Solution AcuSens 4MP varifocale dome, HDMI
Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0014 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
- Focal Length & FOV
2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48°
8 to 32 mm, horizontal FOV 42° to 15°, vertical FOV 23° to 9°, diagonal FOV 49° to 17°
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
- Lens MountIntegrated
- Iris TypeP-iris
- Aperture
2.8 to 12 mm: F1.2
8 to 32 mm: F1.7
- Depth Of Field
2.8 to 12 mm: 1.5 m to ∞
8 to 32 mm: 1.5 m to ∞
DORI
- DORI
2.8 to 12 mm: D: 60 m to 149 m, O: 23 m to 59 m, R: 12 m to 29 m, I: 6 m to 14 m
8 to 32 mm: D: 150 m to 400 m, O: 59 m to 158 m, R: 30 m to 80 m, I: 15 m to 40 m
- Illuminator
- Supplement Light Range
2.8 to 12 mm: up to 40 m
8 to 32 mm: up to 60 m
- Supplement Light TypeIR
- Smart Supplement LightYes
- IR Wavelength850 nm
Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG
*Third stream and fourth stream are supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)5 fixed regions for main stream and sub-stream
- Target CroppingYes
Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)140 dB
- Image EnhancementBLC, HLC, 3D DNR
- SNR≥ 52 dB
Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Audio
1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Built-In Microphone-U: Yes
- Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A; 24 VAC, 1 A)
- Reset KeyYes
- Power Output12 VDC, 100 mA
Event
- Basic EventMotion detection, video tampering alarm, exception
- Smart Event
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Unattended baggage detection, object removal detection, scene change detection, audio exception detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
- Deep Learning Function
- Face CaptureYes
General
- Power
12 VDC ± 25%, 0.9 A, max. 10.8 W, two-core terminal block
24 VAC ± 20%, 0.75 A, 50/60 Hz, max. 10.8 W
PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
- DimensionØ162 × 141.8 mm (Ø6.4" × 5.6")
- Package Dimension251 mm × 215 mm × 189 mm (9.9″ × 8.5″ × 7.4″)
- WeightApprox. 1420 g (3.1 lb.)
- With Package WeightApprox. 2058 g (4.5 lb.)
- Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionAnti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Language
- 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
- EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
- Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
- Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
- Protection
IP67 (IEC 60529-2013)
IK10 (IEC 62262: 2002)
- Anti-Corrosion Protection-Y: NEMA 4X: NEMA 250-2014
