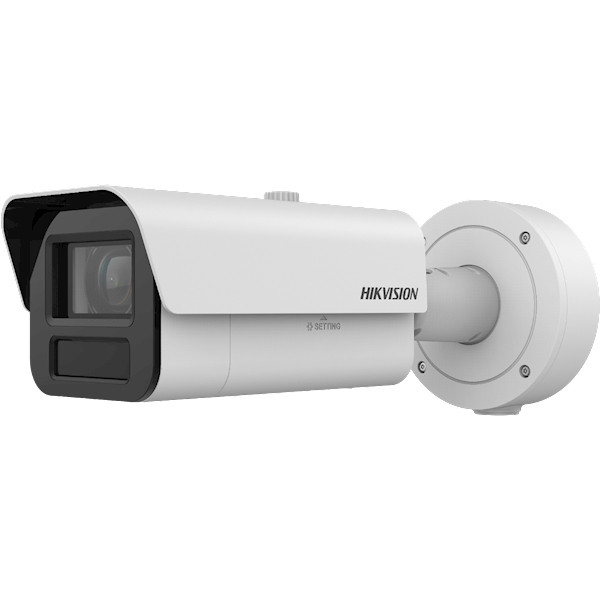

4MP DeepinView Varifocal Bullet 25x zoom
Camera
- Image Sensor1/2.5" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time1 s to 1/30,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
- Focal Length & FOV4.7 to 118 mm, horizontal FOV 58° to 2.8°, vertical FOV 32.3° to 1.6°, diagonal FOV 63° to 3°
- FocusAuto, semi-auto, manual
- Iris TypeP-iris
- Aperture4.7 to 118 mm: F1.6 to F3.8
DORI
- DORI
Wide:
D: 106 m, O: 42.1 m, R: 21.2 m, I: 10.6 m
Tele:
D: 2200 m, O: 873 m, R: 440 m, I: 220 m
Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 200 m
- Smart Supplement LightYes
- IR Wavelength850 nm
Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Fifth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region Of Interest (ROI)4 fixed regions for each stream
- Target CroppingYes
- E-PTZSupports Patrol and Auto-tracking settings
Audio
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3)
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
- Audio TypeMono sound
- Environment Noise FilteringYes
Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+
Local service: Chrome 57.0+, Firefox 52.0+
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)140 dB
- Image EnhancementBLC, HLC, Defog, 3D DNR
- SNR≥ 52 dB
- Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Interface
- Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio
- 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
- 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power OutputWith -Y: 12 VDC, max. 100 mA
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration
- etection
- Smart Event
- Line crossing detection, intrusion detection, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
- Scene change detection, audio exception detection, defocus detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Deep Learning Function
- Multi-Target-Type Detection
- Detects up to 60 taregets simultaneously
- Supports simultaneous detection and capture of human body, face and vehicle
- Gets 7 face features, 13 human body features and 2 vehicle features
- Face Capture
- 1. Detects up to 60 faces simultaneously
- 2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°
- 3. Uploads face with background and closed-up face pictures
- Face Comparison
- Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.
- Supports face library encryption
- General
- Power
- -IZHSY:
- 12 VDC ± 20%, 1.73 A, max. 20.7 W, three-core terminal block
- 24 VAC ± 20%, 1.31 A, max. 19.9 W, three-core terminal block
- PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.46 A to 0.35 A, max. 19.5 W
- -IZHS:
- 12 VDC ± 20%, 1.62 A, max. 19.4 W, two-core terminal block
- 24 VAC ± 20%, 1.21 A, max. 18.7 W, two-core terminal block
- PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18.2 W -IZSY:
- 12 VDC ± 20%, 1.13 A, max. 13.48 W, three-core terminal block
- 24 VAC ± 20%, 0.89 A, max. 12.14 W, three-core terminal block
- PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.22 A to 0.29 A, max. 12.29 W -IZS:
- 12 VDC ± 20%, 1.02 A, max. 12.22 W, two-core terminal block
- 24 VAC ± 20%, 0.8 A, max. 11.49 W, two-core terminal block
- PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.20 A to 0.26 A, max. 10.50 W
Dimension
- With -Y: Ø140 mm × 378.4 mm (Ø5.5" × 14.9\")
- Without -Y: Ø144.1 mm × 375.2 mm (Ø5.7 × 14.8\")"
- Package Dimension425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
- With -Y: Approx. 2160 g (4.8 lb.)
- Without -Y: Approx. 2130 g (4.7 lb.)With Package Weight
- With -Y: Approx. 3310 g (7.3 lb.)
- Without -Y: Approx. 3200 g (7.1 lb.)
Storage Conditions
- Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional
- hinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function5 streams, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Heater Yes
- De-Icing Yes
Approval
- EMC
- FCC (47 CFR Part 15, Subpart B);
- CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
- RCM (AS/NZS CISPR 32: 2015);
- IC (ICES-003: Issue 7);
- KC (KN 32: 2015, KN 35: 2015)
- Safety
- UL (UL 62368-1);
- CB (IEC 62368-1:2014+A11);
- CE-LVD (EN 62368-1:2014/A11:2017);
- BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
- LOA (IEC/EN 60950-1)
Environment
- CE-RoHS (2011/65/EU);
- WEEE (2012/19/EU);
- Reach (Regulation (EC) No 1907/2006)
- ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
- Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
- OtherPVC FREE
