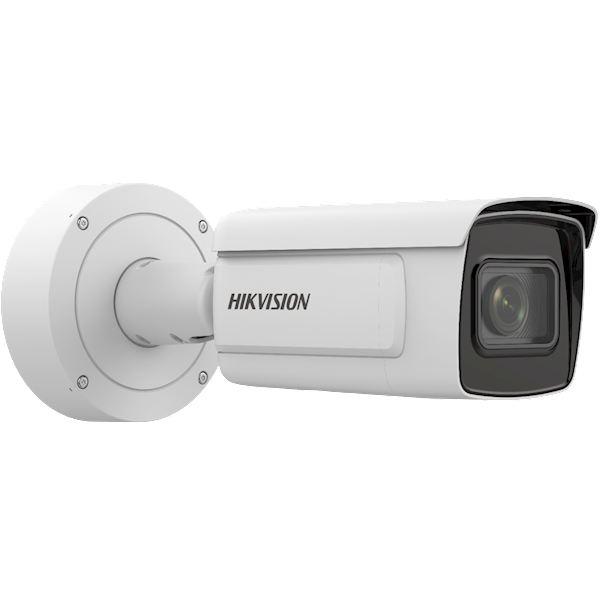

4MP Deeplearning Bullet, Heater, Nema coating, 8-32mm
Camera
- Image Sensor 1/1.8″ Progressive Scan CMOS
- Min. Illumination Color: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)
- Shutter Speed 1 s to 1/100,000 s
- Slow Shutter Yes
- P/N P/N
- Wide Dynamic Range 140 dB
- Day & Night IR cut filter
- Power-off Memory Yes
Lens
- Focus Auto, semi-auto, manual
- Lens Type & FOV
- 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal
- FOV: 141.1° to 48°
- 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV:
- 49.6° to 17.3
Aperture
- 2.8 to 12 mm: F1.2 to F2.5
- 8 to 32 mm: F1.7 to F1.73
- Lens Mount Integrated
- Blue Glass Module Blue glass module to reduce ghost phenomenon.
- P-Iris Yes
Illuminator
- IR Range
- 2.8 to 12 mm: 50 m
- 8 to 32 mm: 100 m
- Wavelength 850 nm
- Smart Supplement Light Yes
Video
- Max. Resolution 2680 ×1520
- Main Stream
- 50Hz: 25fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- 60Hz: 30fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50Hz: 25fps (704 × 576, 640 × 480)
- 60Hz: 30fps (704 × 480, 640 × 480)
- Third Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fifth Stream
- 50Hz: 25fps (704 × 576, 640 × 480)
- 60Hz: 30fps (704 × 480, 640 × 480)
- Custom Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression
- Main stream: H.265+/H.265/H.264+/ H.264
- Sub-stream/Third stream/Fourth stream/Fifth stream/custom
- stream:H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main Stream supports
- H.265+ Main Stream supports
- Bit Rate Control CBR/VBR
- Stream Type Main stream/Sub-stream/third stream/fourth stream/fifth stream/custom stream
- Scalable Video Coding (SVC) H.265 and H.264 support
- Region of Interest (ROI) 4 fixed regions for each stream
Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate
- 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-
- 320Kbps(MP3)
- Audio Type Mono sound
Network
- Simultaneous Live View Up to 20 channels
- API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
- PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Smooth Streaming Yes
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
- Password protection, complicated password, HTTPS encryption,802.1X authentication
- (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
- authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP
- OVER HTTPS, Control Timeout Settings, Security Audit Log,TLS 1.2
- Network Storage
- microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
- network replenishment (ANR)
- Together with high-end Hikvision memory card, memory card encryption and health
- detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE8+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
- Local service: Chrome 41.0+, Firefox 30.0+
- Smart IR
- The IR LEDs on camera should support Smart IR function to automatically adjust power
- to avoid image overexposure.
- Day/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm In
- Target Cropping Yes
- Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
- Image Parameters Switch Yes
Image Settings
- Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- adjustable by client software or web browser
- SNR ≥52 dB
Interface
- Alarm 2 input, 2 outputs (max. 24 VDC, 1 A)
Audio
- -IZHSY:
- 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance:
- 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector,
- max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type:
- non-equilibrium, mono sound
- RS-485 With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Video Output 1 Vp-p Composite Output(75Ω/CVBS)(For debugging only)
- On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Power Output With -Y: 12 VDC, max. 200 mA (supported by all power supply types)
- Heater Yes
- Smart Feature-Set
Basic Event
- Motion detection, video tampering alarm, vibration detection, exception (network
- disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
- Line crossing detection, up to 4 lines configurable
- Intrusion detection, up to 4 regions configurable
- Region entrance detection, up to 4 regions configurable
- Region exiting detection, up to 4 regions configurable
- Unattended baggage detection, up to 4 regions configurable
- Object removal detection, up to 4 regions configurable
- Scene change detection, audio exception detection, defocus detection
- Counting Yes
Intelligent (Deep Learning Algorithm)
- Face Recognition
- Detects up to 30 faces simultaneously;
- Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;
- Up to 3 face libraries with up to 30000 faces each are configurable;
- Recognizes face identity via face modeling, grading and comparing to those in face
- library;
- Supports face library encryption.
- Multi-target-type Detection
- Supports simultaneous detection of human body and face
- Gets 8 face features and 13 human body features
Face Counting
- Supports entering/exiting counting (track 30 targets simultaneously);
- Supports facial recognition;
- Supports 24-hour dynamic deduplication and face library deduplication (up to 3 face
- libraries with up to 30000 faces);
- Supports reporting alarms when detecting the face is the same as that in the face
- library.
- Hard Hat Detection
- Detects up to 30 human targets simultaneously
- Supports up to 4 shield regions
- Queue Management
- Detects queuing-up people number, and waiting time of each person
- Generates reports to compare the efficiency of different queuing-ups and display the
- changing status of one queue
- Supports raw data export for further analysis
Premier Protection
- Line crossing, intrusion, region entrance, region exiting
- Support alarm triggering by specified target types (human and vehicle)
- Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag,
- etc.
General
- Linkage Method
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
- output, trigger recording, trigger capture
- Trigger recording: memory card, network storage, pre-record and post-record
- Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
- Trigger notification: HTTP, ISAPI, alarm output, Email
- Online Upgrade Yes
- Dual Backup Yes
- Firmware Version V5.5.121
