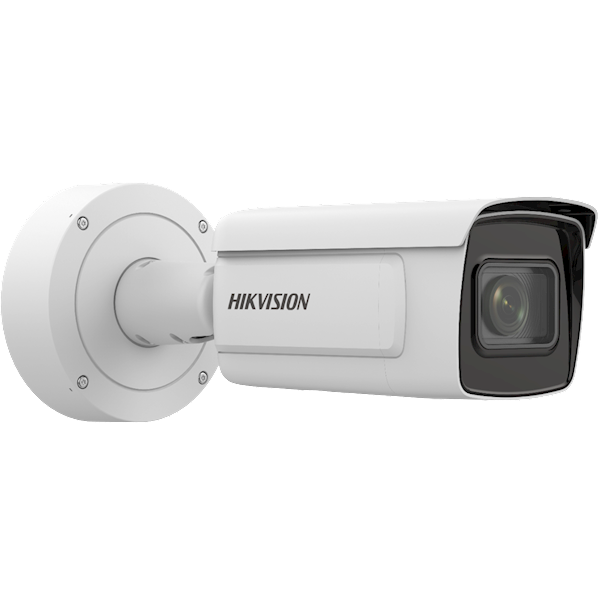

12MP DeepinView Varifocal Bullet Camera 8-32mm
Camera
- Image Sensor1/1.7" Progressive Scan CMOS
- Min. IlluminationColor: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)
- Shutter Speed1 s to 1/100,000 s
- Slow ShutterYes
- P/NP/N
- Wide Dynamic RangeDigital WDR
- Day & NightIR cut filter
- Power-Off MemoryYes
Lens
- FocusAuto, semi-auto, manual
- Lens Type & FOV
- 2.8 to 12 mm, horizontal FOV: 96.2° to 36.4°, vertical FOV: 69.3° to 27.2°, diagonal FOV: 129.4° to 45.5°
- 8 to 32 mm, horizontal FOV: 40.2° to 14.4°, vertical FOV: 29.6° to 10.8°, diagonal FOV: 51.47° to 17.8°
Aperture
- 2.8 to 12 mm: F1.2 to F2.5
- 8 to 32 mm: F1.7 to F1.73
Lens MountIntegrated
- Blue Glass ModuleBlue glass module to reduce ghost phenomenon.
- P-IrisYes
- Illuminator
IR Range
- 2.8 to 12 mm: 50 m
- 8 to 32 mm: 100 m
- Wavelength850 nm
- Smart Supplement LightYes
Video
- Max. Resolution4000 × 3000
Main Stream
- 50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720)
- 60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
- 50Hz: 20fps (4000 × 3000)
- 60Hz: 20fps (4000 × 3000)
Sub Stream
- 50Hz: 25fps (704 × 576, 640 × 480)
- 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream
- 50Hz: 25fps (704 × 576, 640 × 480)
- 60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression
- Main stream: H.265+/H.265/H.264+/ H.264
- Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main Stream supports
- H.265+Main Stream supports
- Bit Rate ControlCBR/VBR
- Stream TypeMain stream/Sub-stream/third stream/fourth stream/fifth stream/custom stream
- Scalable Video Coding (SVC)H.265 and H.264 support
- Region Of Interest (ROI)4 fixed regions for each stream
Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
- Audio TypeMono sound
Network
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Smooth StreamingYes
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage
- microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
- Plug-in required live view: IE8+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
- Local service: Chrome 41.0+, Firefox 30.0+
- Smart IRThe IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
- Day/Night SwitchDay, Night, Auto, Schedule, Triggered by Alarm In
- Target CroppingYes
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- SNR≥52dB
Interface
- Alarm2 input, 2 outputs (max. 24 VDC, 1 A)
- Audio
-IZHY:
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- RS-485With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Video Output1 Vp-p Composite Output(75Ω/CVBS)(For debugging only)
- On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Power OutputWith -Y: 12 VDC, max. 200 mA (supported by all power supply types)
- HeaterYes
Event
- Basic EventMotion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event
- Line crossing detection, up to 4 lines configurable
- Intrusion detection, up to 4 regions configurable
- Region entrance detection, up to 4 regions configurable
- Region exiting detection, up to 4 regions configurable
- Unattended baggage detection, up to 4 regions configurable
- Object removal detection, up to 4 regions configurable
- Scene change detection, audio exception detection, defocus detection
- CountingYes
Deep Learning Function
- Face Recognition
- Detects up to 30 faces simultaneously;
- Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;
- Up to 3 face libraries with up to 30000 faces each are configurable;
- Recognizes face identity via face modeling, grading and comparing to those in face library;
- Supports face library encryption.
- Multi-Target-Type Detection
- Supports simultaneous detection of human body and face
- Gets 8 face features and 13 human body features
- Face Counting
- Supports entering/exiting counting (track 30 targets simultaneously);
- Supports facial recognition;
- Supports 24-hour dynamic deduplication and face library deduplication (up to 3 face libraries with up to 30000 faces);
- Supports reporting alarms when detecting the face is the same as that in the face library.
- Hard Hat Detection
- Detects up to 30 human targets simultaneously
- Supports up to 4 shield regions
- Queue Management
- Detects queuing-up people number, and waiting time of each person
- Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
- Supports raw data export for further analysis
- Premier Protection
- Line crossing, intrusion, region entrance, region exiting
- Support alarm triggering by specified target types (human and vehicle)
- Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
General
- Linkage Method
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Trigger recording: memory card, network storage, pre-record and post-record
- Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
- Trigger notification: HTTP, ISAPI, alarm output, Email
- Online UpgradeYes
- Dual BackupYes
- Firmware VersionV5.5.121
- Web Client Language
- 33 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
- Software ResetYes
- Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 20%, three-core terminal block, reverse polarity protection; PoE: 802.3at, Type 2 Class 4
- Power Consumption And Current
- 12 VDC, 1.33 A, max. 16.0 W
- PoE: (802.3at, 42.5V-57V), 0.43 A to 0.31 A,max. 18.0 W
- Power Interface3-core terminal block
- Camera MaterialAluminum alloy body
- Camera Dimension
- Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)
- With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
- Package Dimension405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
- Camera Weight1920 g (4.2 lb.)
- With Package Weight3060 g (6.7 lb.)
Metadata
- MetadataMetadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.
-
-
- Approval
- ClassClass B
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
- Automotive And RailwayWith -R: EN50121-4
- Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
- OtherWith -Y: PVC FREE
