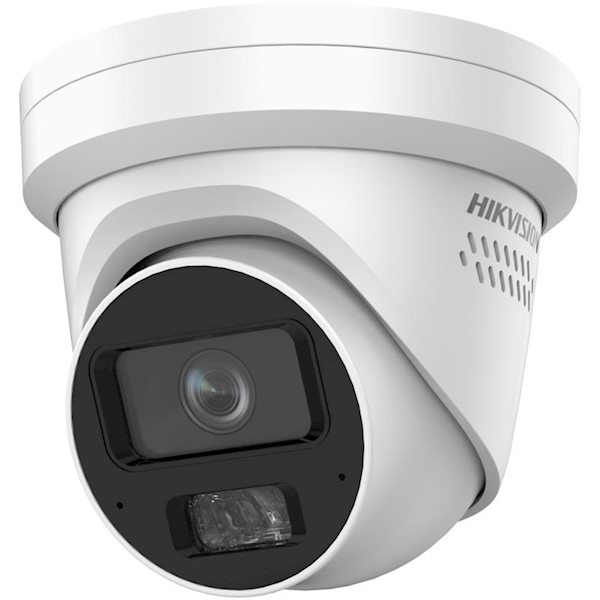

Hikvision, 4MP DarkfighterS DeepinView Turret
Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & Night
- IR cut filter,
- Blue glass module (less ghost phenomenon)
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 65°,rotate: 0° to 360°
- Lens
- Focal Length & FOV
- 2.8 mm: horizontal FOV 111.0°, vertical FOV 57.6°, diagonal FOV 138.4°
- 4 mm: horizontal FOV 94.7°, vertical FOV 49.4°, diagonal FOV 112.6°
- Iris TypeFixed
- ApertureF1.0
DORI
- DORI
- 2.8 mm: D: 61.5 m, O: 24.4 m, R: 12.73 m, I: 6.2 m
- 4 mm: D: 72.1 m, O: 28.6 m, R: 14.4 m, I: 7.2 m
Illuminator
- Supplement Light TypeHybrid (IR and White Light)
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- IR Wavelength850 nm
HEOP
- Open Resources
- Memory: 40 MB,
- Smart RAM: 350 MB,
- eMMC: 1 GB
- Computing Power1.5 TOPS
- Open CapabilityHEOP 2.0 OpendevSDK
- Deep Learning StructureCaffe,TensorFlow,PaddlePaddle,ONNX
- Programming LanguageC++
Video
- Main Stream
- 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (704 × 576, 640 × 480)
- 60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
-
- Fourth Stream
- 50 Hz: 25 fps (704 × 576, 640 × 480)
- 60 Hz: 30 fps (704 × 480, 640 × 480)
-
- Fifth Stream
- 50 Hz: 25 fps (704 × 576, 640 × 480)
- 60 Hz: 30 fps (704 × 480, 640 × 480)
-
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG,
- Third stream: H.265/H.264,
- Fourth stream: H.265/H.264/MJPEG,
- Fifth stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Target CroppingYes
- Region Of Interest (ROI)4 fixed regions for each stream
Audio
- Audio TypeMono sound
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
- Network Storage
- NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200,Hik-Connect
- Web Browser
- Plug-in required live view: IE 10, IE 11,
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Image Parameters SwitchYes
- Image SettingsSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
- Wide Dynamic Range (WDR)140 dB
- Image EnhancementBLC,HLC,3D DNR,Defog
- Privacy Mask8 programmable polygon privacy masks
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Image StabilizationEIS
Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Alarm1 input, 1 output (max. 12 VDC, 30 mA)
- Audio1 input (line in), input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Power Output12 VDC, max. 100 mA
Event
- Basic EventMotion detection,video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
- Smart Eventscene change detection,audio exception detection,defocus detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
- Face Capture
-
- Detects up to 60 faces simultaneously,
- Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
- Uploads face with background and closed-up face pictures
- People Counting
- Supports crossline people counting,
- Supports counting, displaying and exporting the people flow data of entering and exiting. (The data is stored in the flash.),
- The real-time people flow data is displayed on the screen. ,
- Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°.,
- Uploads face with background and closed-up face picture.,
- Supports real-time uploading and uploading by statistic cycle
- Queue Management
- Supports up to 8 detection regions, and independent arming schedule and linkage method,
- Supports 2 detection modes: regional people queuing-up, waiting time detection,
- Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue,
- Supports raw data export for further analysis,
- Supports real-time data uploading and scheduled data uploading,
- Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold,
- Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Heat Map
- A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
- Two report types are available, space heat map and time heat map line chart.
- Perimeter Protection
- Line crossing, intrusion, region entrance, region exiting,
- Support alarm triggering by specified target types (human and vehicle)
- MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection
- On/Off Duty Detection
- Supports up to 8 detection regions, and independent arming schedule and linkage method,
- Supports 2 detection modes: absence detection, on/off duty detection,
- Supports parameter settings: person on duty, absence duration
General
- Power
- 12 VDC ± 20%, 0.66A, max. 7.9 W,
- PoE: IEEE 802.3af, Type 1, Class 3, 36 V to 57 V, 0.16 A to 0.26 A, max. 9.69 W
- MaterialAluminum alloy body
- Dimension
- Ø138.6 mm × 124.4 mm (Ø5.46 × 4.86\")"
- Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 6.0")
- WeightApprox. 820 g (1.81 lb.)
- With Package WeightApprox. 1095 g (2.42 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
- 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
- DemistYes
Approval
- EMC
-
- CE-EMC: EN 55032: 2015+A1:2020, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019,
- RCM: AS/NZS CISPR 32: 2015,
- IC: ICES-003: Issue 7,
- KC: KN32: 2015, KN35: 2015
- Safety
- UL: UL 62368-1,
- CB: IEC 62368-1: 2014+A11,
- CE-LVD: EN 62368-1: 2014/A11: 2017,
- BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
- LOA: IEC/EN 60950-1
- Environment
- CE-RoHS: 2011/65/EU,
- WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
