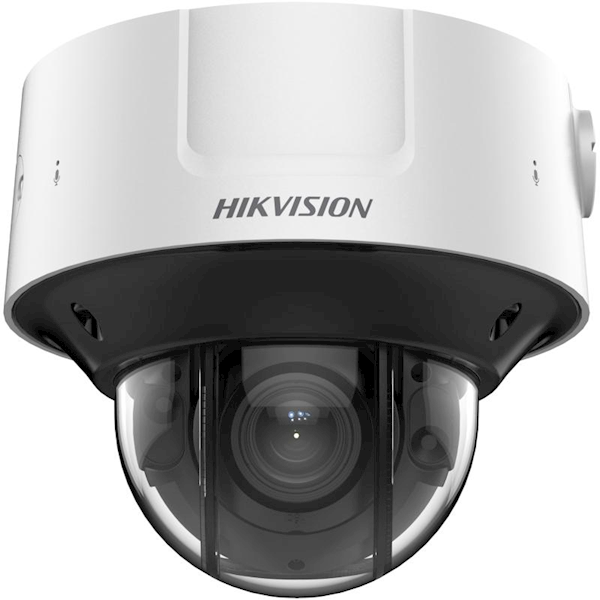

IDS-2CD75C5G0-IZHSY(2.8-12MM), Hikvision 12MP buitendome 2.8-12mm

IR cut filter

Blue glass module to reduce ghost phenomenon.

2.8 to 12 mm, horizontal FOV 96° to 46.2°, vertical FOV 69.2° to 27.2°, diagonal FOV 131° to 45.2°

8 to 32 mm, horizontal FOV 37.8° to 13.6°, vertical FOV 27.8° to 10.3°, diagonal FOV 48.6° to 17.4°

2.8 to 12mm: F1.2 to F2.5

8 to 32 mm: F1.7 to F1.73

2.8 to 12 mm: 30 m

8 to 32 mm: 50 m

50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

50 Hz: 20 fps (4000 × 3000)

60 Hz: 20 fps (4000 × 3000)

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE8+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

Local service: Chrome 41.0+, Firefox 30.0+

Without -R:

1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound; 2 built-in microphones

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture;

Trigger recording: memory card, network storage, pre-record and post-record;

Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email;

Trigger notification: HTTP, ISAPI, alarm output, Email.

Line crossing detection, up to 4 lines configurable

Intrusion detection, up to 4 regions configurable

Region entrance detection, up to 4 regions configurable

Region exiting detection, up to 4 regions configurable

Unattended baggage detection, up to 4 regions configurable

Object removal detection, up to 4 regions configurable

Scene change detection, audio exception detection, defocus detection

Detects up to 30 faces simultaneously;

Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;

Up to 3 face libraries with up to 30000 faces each are configurable;

Recognizes face identity via face modeling, grading and comparing to those in face library;

Supports face library encryption.

Supports simultaneous detection of human body and face;

Gets 8 face features and 13 human body features.

Detects up to 30 human targets simultaneously;

Supports up to 4 shield regions.

Supports entering/exiting counting (track 30 targets simultaneously);

Supports facial recognition;

Supports 24-hour dynamic deduplication and face library deduplication (up to 3 face libraries with up to 30000 faces);

Supports reporting alarms when detecting the face is the same as that in the face library.

Detects queuing-up people number, and waiting time of each person;

Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue;

Supports raw data export for further analysis.

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

With extra load: 12 VDC ± 20%, 1.16 A, max. 13.9 W; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.33 A to 0.25 A, class 4;

Without extra load: 12 VDC ± 20%, max. 12.5 W; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.3 A to 0.22 A, class 4;

With –Y: three-core terminal block

Without –Y: two-core terminal block

with extra load\" means that an extra device is connected to and powered by the camera."

Without -Y: approx. 1480 g (3.3 lb.)

With -Y: approx. 1550 g (3.4 lb.)

Without -Y: approx. 2407 g (5.3 lb.)

With -Y: approx. 2206 g (4.9 lb.)

FCC (47 CFR Part 15, Subpart B)

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)

RCM (AS/NZS CISPR 32: 2015)

IC (ICES-003: Issue 6, 2016)

KC (KN 32: 2015, KN 35: 2015)

UL (UL 60950-1)

CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013)

CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013)

LOA (IEC/EN 60950-1)

BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015)

CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach (Regulation (EC) No 1907/2006)

IP67 (IEC 60529-2013)

IK10 (IEC 62262: 2002)
