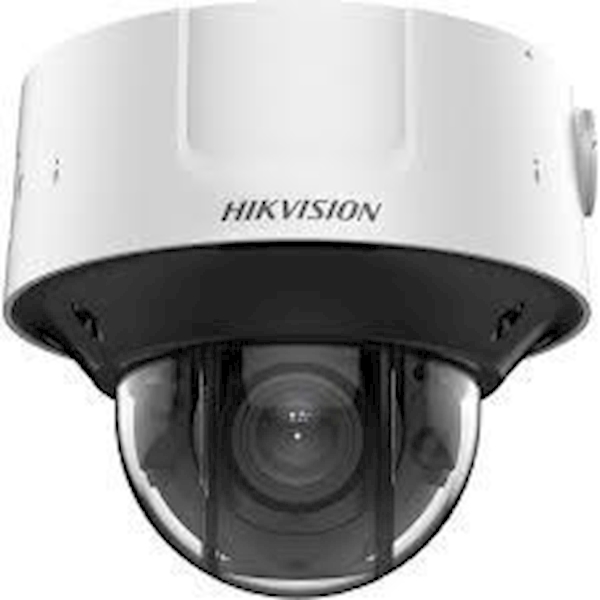

4MP Deeplearning Buitendome, Heater, Nema coating, 2.8-12mm
Camera
- Image Sensor 1/1.8″ Progressive Scan CMOS
- Min. Illumination Color: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)
- Shutter Speed 1 s to 1/100,000 s
- Slow Shutter Yes
- P/NP/N
- Wide Dynamic Range 140 dB
- Day & NightIR cut filter
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Power-off Memory Yes
Lens
- FocusAuto, semi-auto, manual.
- Lens Type & FOV
2.8 to 12 mm, horizontal FOV 114.5° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.1° to 48°
8 to 32mm, horizontal FOV 42.5° to 15.1°, vertical FOV 23.3° to 8.64°, diagonal FOV 49.6° to 17.3°
- Aperture
2.8 to 12mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
- Lens Mount Integrated
- Blue Glass Module Blue glass module to reduce ghost phenomenon.
- P-Iris Yes
Illuminator
- IR Range
2.8 to 12 mm: 30 m
8 to 32 mm: 50 m
- Wavelength 850 nm
- Smart Supplement Light Yes
Video
- Max. Resolution2680 × 1520
- Main Stream
50Hz: 25fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
- Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fifth Stream
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
- Custom Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main Stream supports
- H.265+ Main Stream supports
- Bit Rate Control CBR/VBR
- Stream Type Main stream/Sub-stream/third stream/fourth stream/fifth stream/custom stream
- Scalable Video Coding (SVC) H.265 and H.264 support
- Region of Interest (ROI)4 fixed regions for each stream
Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
- Audio Type mono sound
Network
- Simultaneous Live View Up to 20 channels
- API Open Network VIdeo Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Smooth Streaming Yes
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network VIdeo Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage
microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
- Smart IR The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
- Day/Night SwitchDay, Night, Auto, Schedule, Triggered by Alarm In
- Target Cropping Yes
- Distortion Correction Distortion Yes
- Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- SNR ≥52dB
Interface
- Alarm 1 input, 1 output (max. 24 VDC, 1 A)
- Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound ; 2 built-in microphones
- RS-4851 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (For debugging only)
- On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Power Output 12 VDC, max. 200 mA (supported by all power supply types)
- Heater Yes
Event
- Basic Event Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event
Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable,
Scene change detection, audio exception detection, defocus detection
- Counting Yes
Deep Learning Function
- Hard Hat Detection
Detects up to 30 human targets simultaneously;
Supports up to 4 shield regions
- Premier Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
- Queue Management
Detects queuing-up people number, and waiting time of each person
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
General
- Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email
- Online Upgrade Yes
- Dual Backup Yes
- Web Client Language 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
- General Function Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks,flash log, password reset via e-mail, pixel counter
- Software Reset Yes
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Stroomvoorziening
12 VDC ± 20%, three-core terminal block, reverse polarity protection;
24 VAC ± 20%, three-core terminal block, reverse polarity protection;
PoE: 802.3at, Type 2, Class 4
- Power Consumption and Current
With extra load: 12 VDC, 1.16 A, max. 13.9 W; PoE (802.3at, 42.5 V to 57 V), 0.33 A to 0.25 A, class 4;
Without extra load: 12 VDC, 0.98 A, max. 12.5 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.22 A, class 4;
with extra load\" means that an extra device is connected to and powered by the camera."
- Power Interface Three-core terminal block
- Camera Material Aluminum alloy body
- Screw Material SUS316
- Camera Dimension Ø162 × 141.8 mm (Ø6.4″ × 5.6″)
- Package Dimension 251 × 215 × 189 mm (9.9" × 8.5" × 7.4")
- Camera Weight 1550 g (3.4 lb.)
- With Package Weight 2206 g (4.9 lb.)
- Anti-IR reflection bubble Yes
Metadata
- Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, and queue management are supported.
Approval
- Class
Class B
- EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
- Anti-Corrosion Protection
NEMA 4X (NEMA 250-2019)
