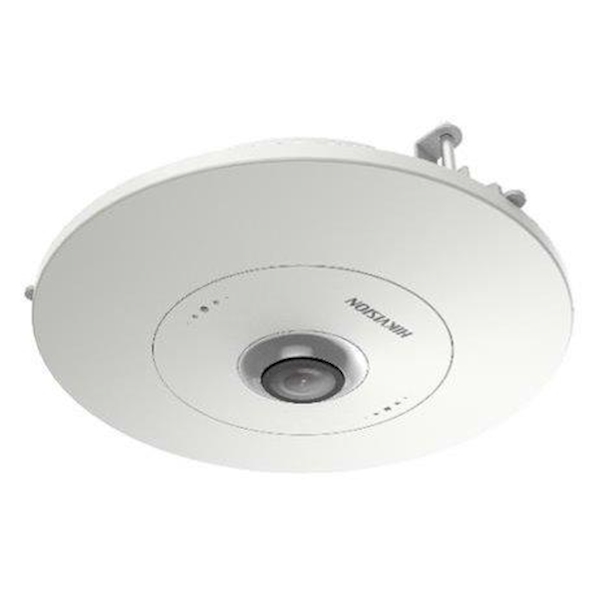

6 MP In-Ceiling Fisheye Network Camera
- Camera
- Image Sensor1/1.8'' Progressive Scan CMOS
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON)
- Shutter Speed1 s to 1/100,000 s
- Slow ShutterYes
- Digital Noise Reduction3D DNR
- WDRDigital WDR
- Lens
- FOV360°(In-ceiling mounting)
- Lens MountM12
- Focal length1.27 mm
- Aperture RangeF 2.6
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Image
- Image EnhancementBLC, HLC, defog, 3D DNR
- Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Max. Resolution3072 × 2048
- Main StreamMax. Frame Rate50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
- Sub-streamMax. Frame Rate50Hz: 25fps (720 × 720, 720 × 480) 60Hz: 30fps (720 × 720, 720 × 480)
- Network
- Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 user levels, administrator, operator and user
- ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
- Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
- Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
- Security MeasuresPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
- General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Firmware Version5.5.73
- Interface
- Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
- Reset ButtonYes
- Audio (-S)1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm); 2 built-in microphones, mono sound
- Alarm (-S)1-ch alarm input, max. 12 V; 1-ch alarm output, max 12 VDC, 0.5 A
- On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- General
- Power Supply12 VDC±20%, PoE (802.3af, class 3), two-core terminal block
- MaterialCover & trim ring: plastic, bottom base: metal
- DimensionsΦ165 × 69 mm (6. 5" × 2.7")
- WeightApprox. 480 g (1.1 lbs)
- Operating Conditions-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
- Power Consumption12 VDC±20%, PoE (802.3af, class 3), two-core terminal block
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- H.264 TypeBaseline Profile/Main Profile/High Profile
- Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
- H.265 TypeMain Profile
- Video Bitrate32 Kbps to 16 Mbps
- SVCH.265 and H.264 support
- Live View Display
- Display Mode14 display modes in total Software decoding: Fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder Hardware decoding: Fisheye view, 180 panorama view, panorama view, 4PTZ, 4PTZ fusion, fisheye + 3PTZ,
- Mount TypeSupport in-ceiling mounting
- Smart Feature-set
- Exception DetectionAudio exception detection
- Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- Region of Interest4 fixed regions for main stream and sub-stream
