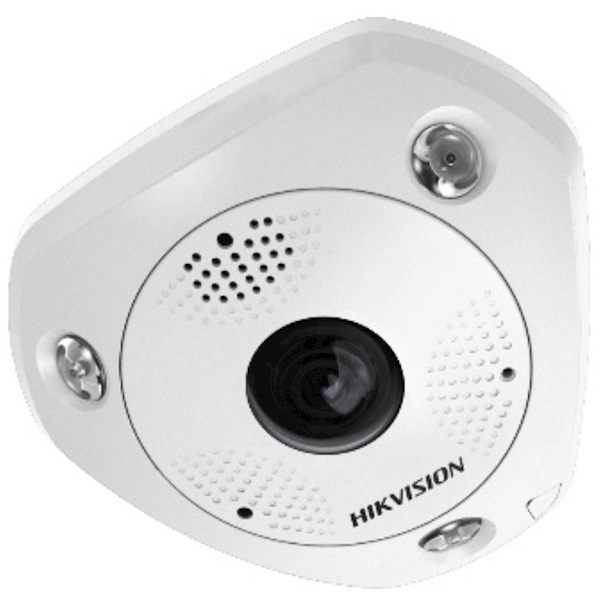

Fisheye, 12MP, 15m IR, IP66
- Camera
- Image Sensor1/1.7″ Progressive Scan CMOS
- Min. IlluminationColor: 0.05 Lux @ (F2.2, AGC ON), B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/100,000 s
- Slow ShutterSupport
- DNR3D DNR
- WDRDigital WDR
- Day & NightIR cut filter
- Lens
- ApertureF2.2
- FocusNo
- FOVHorizontal FOV: 180°, vertical FOV: 180°
- Lens MountM12
- Focal length1.29 mm
- Audio
- Audio Compression8 kHz/16 kHz
- Environment Noise Filteringyes
- Audio I/O2 built-in microphones, 1 built-in speaker, mono sound -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
- Image
- Image EnhancementBLC, HLC, defog, 3D DNR
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
- Sub-Stream50Hz: 20fps (720 × 720, 640 × 480) 60Hz: 20fps (720 × 720, 640 × 480)
- Max. Resolution4000 × 3000
- Main Stream50Hz: 20fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560) 60Hz: 20fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 user levels, administrator, operator and user
- ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200, Hik-Central
- Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
- DetectionSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
- General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Firmware Version5.5.73
- Smart featuresLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, Audio exception detection, Intersection Analysis, Heat Map, People Counting
- Interface
- Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
- Alarm1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
- On-board StorageSupport microSD/SDHC/SDXC card (256 G)
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- H.264 TypeBaseline Profile/ Main Profile /High Profile
- Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
- H.265 TypeMain Profile
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Video Bit Rate32 Kbps to 16 Mbps
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- IR
- IR RangeUp to 15 m IR range, 3 LEDs. Each LED is independently controlled.
- Wavelength850nm
- Live View Display
- Display Mode18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Smart Feature-set
- Exception DetectionAudio exception detection
- Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- Region of Interest4 fixed regions for main stream
- General
- Power Supply-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
- WeightApprox. 1400 g (3.09 lbs)
- Power Consumption12 VDC, 1 A, max. 12.5 W s PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W
- WiperNo
