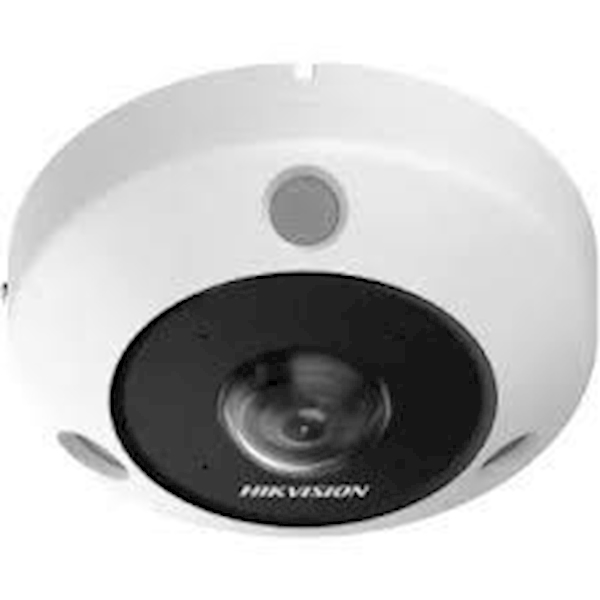

Hikvision, 6 MP, DeepinView, Fisheye, IP67
Video
- Main Stream
- 50 Hz: 25 fps/60 Hz: 30 fps:
Fisheye View:
- 2560 × 2560, 2048 × 2048, 1280 × 1280
- 180 Panorama View:
- 2048 × 1536, 1920 × 1440
- 180 Dual Channel Panorama View:
- 2048 × 768, 1920 × 720
Panorama View:
4PTZ View:
- camera 01/camera 02/camera 03/camera 04: 1024 × 768
- Fisheye + 3PTZ View:
- camera 01: 2048 × 2048, 1024 × 1024
- camera 02/camera 03/camera 04: 1024 × 768
4PTZ Fusion View:
Sub-Stream
- 50 Hz: 25 fps/60 Hz: 30 fps:
- Fisheye View:
- 720 × 720, 480 × 480
180 Panorama View:
- 640 × 480, 320 × 240
- 180 Dual Channel Panorama View:
- 640 × 480, 320 × 240
- Panorama View:
- 640 × 360, 320 × 240
4PTZ View:
- camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
- Fisheye + 3PTZ View:
- camera 01: 720 × 720
- camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Video Compression
- Main stream: H.265+/H.265/H.264+/ H.264,
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile, Main Profile, High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR, VBR
- Scalable Video Coding (SVC) H.264 and H.265 encodingRegion of Interest (ROI) 4 fixed regions for each stream
Fisheye Display
- Mount Type Support wall/table/ceiling mounting
- Decoding Mode Support hardware decoding and software decoding
- Display Mode
- 20 display modes in total,
- Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360
- panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ,
- 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,
- Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama,
- panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate
- 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
- (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
Protocols
- TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
- NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP,
- ARP, WebSocket, WebSockets
- Simultaneous Live View Up to 20 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
Security
- Password protection, complicated password, HTTPS encryption, 802.1X authentication
- (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
- authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
- Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS
- 1.2, host authentication (MAC address)
- Network Storage
- NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
- Together with high-end Hikvision memory card, memory card encryption and health
- detection are supported.
- Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser
- Plug-in required live view: IE 10, IE 11,
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch Yes
- Image Settings
- saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client
- software or web browser
- Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger
- Wide Dynamic Range (WDR) Digital WDR
- Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog
- Privacy Mask 8 programmable polygon privacy masks
- Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Interface
- Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-in Microphone Yes, 4 built-in microphones
- Built-in Speaker Yes, 1 built-in speaker
Audio
- 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance:
- 4.7 KΩ, interface type: non-equilibrium,
- 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output
- impedance: 100 Ω, interface type: non-equilibrium
- Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key 1 Reset Key
Event
- Basic Event
- Motion detection, video tampering alarm, alarm input and output, exception (network
- disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
- Line crossing detection, intrusion detection, region entrance detection, region exiting
- detection, scene change detection, audio exception detection, defocus detection,
- unattended baggage detection, object removal detection
Linkage
- Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
- output, trigger recording, trigger capture
- Deep Learning Function
People Counting
- Counts people entering, exiting and passing by separately (The data is stored in the
- flash.)
- Supports real-time uploading and uploading by statistic cycle
- Sends email reports on daily, weekly, monthly or annually basis
- Supports up to 3 detection regions, and independent arming schedule and linkage
- method
Queue Management
- Supports up to 8 detection regions, and independent arming schedule and linkage
- method
- Supports 2 detection modes: regional people queuing-up, waiting time detection
- Generates reports to compare the efficiency of different queuing-ups and display the
- changing status of one queue
- Supports raw data export for further analysis
- Supports real-time data uploading and scheduled data uploading
- Regional people queuing-up: supports 4 alarm trigger conditions, including greater
- than threshold, less than threshold, equal to threshold, not equal to threshold
- Waiting time detection: supports 1 alarm trigger condition, including greater than
- threshold
Heat Map
- A graphic description of visits (by calculating amount of people or amount of dwell
- time) in a configured area.,
- Two report types are available, space heat map and time heat map line chart.
- Intersection Analysis
- Detects and analyze flow in an intersection-like scene, and generate reports
- Support one intersection of up to 10 ways
General
- Power
- 12 VDC ± 20%, 1 A, max. 11.5 W, two-core terminal block,
- PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Material Metal
- Dimension Ø 140.3 mm × 59.4 mm (Ø 5.5" × 2.3")
- Package Dimension 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
- Weight Approx. 715 g (1.58 lb.)
- With Package Weight Approx. 1206 g (2.66 lb.)
- Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating
Conditions
- -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
- 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
- Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
- Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
- Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
- Heartbeat, flash log, password reset via email, password protection, one-key reset,
- anti-banding
- Heater Yes
- Cable Length 0.31 m (1.02 ft.)
- Approval
EMC
- CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-
- 2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,
- RCM: AS/NZS CISPR 32: 2015,
- IC: ICES-003: Issue 7,
- KC: KN32: 2015, KN35: 2015
Safety
- UL: UL 62368-1,
- CB: IEC 62368-1: 2014+A11,
- CE-LVD: EN 62368-1: 2014/A11: 2017,
- BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
- CE-RoHS: 2011/65/EU,
- WEEE: 2012/19/EU,
- Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002
