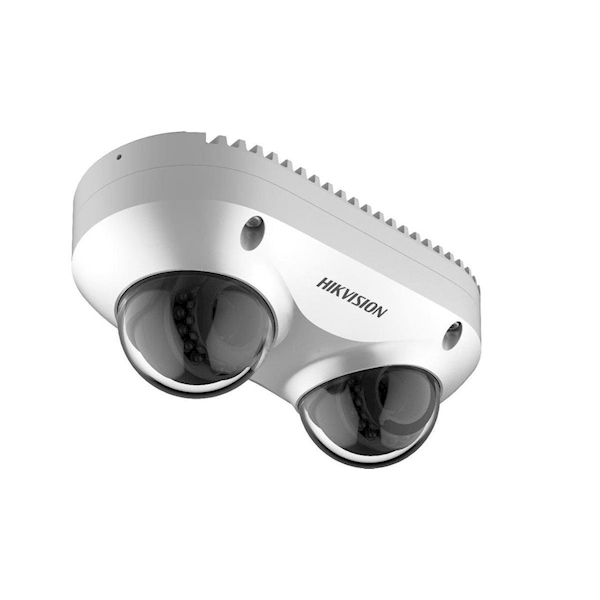

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.009 Lux @ (F1.6, AGC ON),
B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120dB
Day & Night ICR Cut
Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email
Angle Adjustment P: -90 to 90°; T: 0 to 60° (2.8mm), 0 to 70° (4/6mm); R: 0 to 355°
Lens
Lens Type & FOV
2.8mm @ F1.6 horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128°
4 mm @ F1.6, horizontal FOV 79°, vertical FOV 57°, diagonal FOV 104°
6 mm @ F1.6, horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63°
Aperture F1.6
Lens Mount M12
Illuminator
IR Range Up to 10m
Wavelength 850nm
Smart Supplement Light Yes
Video
Max. Resolution 2560 × 1920
Main Stream
50Hz: 25fps ((2560 × 1920, 2048 × 1536);
60Hz: 30fps (2560 × 1920, 2048 × 1536)
Sub Stream
50Hz: 25fps (640 × 480, 704 × 576);
60Hz: 30fps (640 × 480, 704 × 480)
Third Stream
50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 576);
60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 480)
Video Compression H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Specifications H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Stream Type Main stream/Sub-stream/Third stream
Scalable Video Coding (SVC) H.265 and H.264 support
Region of Interest (ROI) 4 fixed regions for each stream
Audio (-S)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32kHz/44.1kHz/48kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps (G.711ulaw), 64Kbps (G.711alaw), 16Kbps(G.722.1), 16Kbps(G.726),
32-160Kbps (MP2L2), 250Kbps(PCM)
Audio Type Stereo
Network
Simultaneous Live View Up to 20 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming Yes
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Security
Password protection, complicated password, HTTPS encryption, 802.1X
authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic
and digest authentication for HTTP/HTTPS, WSSE and digest authentication for
ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
Network Storage NAS (NFS, SMB/CIFS)
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
Day/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm In (-S)
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement BLC, HLC, Defog, EIS, 3D DNRImage Parameters Switch Yes
Image Settings
Saturation, brightness, contrast, sharpness, white balance adjustable by client
software or web browser
Interface
Alarm -S: 1 input, 1 output (max. 36 VDC, 30mA)
Audio
Without -S: 2 built-in mics
-S: 2 built-in mics, 1 line in, 1 line out
RS-485 -S: 1 RS-485 interface, half duplex
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Reset via reset button on camera body, web browser and client software
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Heater Yes
Smart Feature-Set
Smart Event No
Intelligent (Traditional Algorithm)
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error)
General
Online Upgrade Yes
Firmware Version V5.5.94
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech,
Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional
Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti- flicker, heartbeat, mirror, privacy masks
Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-40° to 60°, humidity 95% or less (non-condensing)
Power Supply 12 VDC, POE (802.3af)
Power Consumption and Current
12VDC, 0.9A, max. 11 W
POE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 11 W
Power Interface Φ5.5 mm coaxial power plugMaterial Metal
Camera Dimension 164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7")
Package Dimension 227 × 172 × 125 mm (8.9" × 6.8" × 4.9")
Camera Weight 770g (1.7 lb.)
With Package Weight 1053g (2.3 lb.)
Approval
Class Class B
Protection Ingress protection: IP67, IK10
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No
1907/2006)
