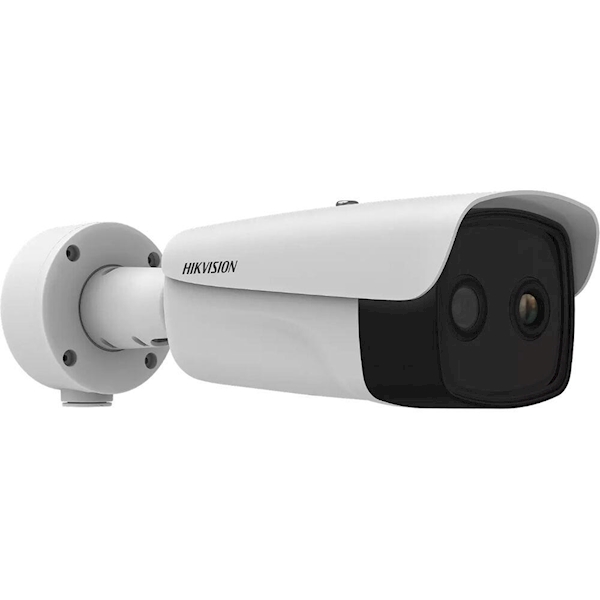

Thermische bi-spectrum bullet, 25mm, NEMA-4X
Thermal Module
- Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution 384 x 288
- Pixel Pitch17 μm
- Spectral Range 8 μm to 14 μm
- Focal Length 25 mm
- IFOV 0.68 mrad
- Aperture F1.0
- Field Of View 14.9° × 11.2° (H × V)
- Min. Focusing Distance 13 m
- Digital Zoom ×2, ×4
Optical Module
- Image Sensor 1/2.7" Progressive Scan CMOS
- Resolution 2688 × 1520
- Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Field Of View 25.25° × 14.44° (H × V)
- Focal Length 12mm
- Shutter Speed 1 s to 1/100,000 s
- White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
- Day & Night ModeIR Cut Filter with Auto Switch
- WDR 120 dB
- ApertureF 1.6
Image Effect
- Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
Illuminator
- IR DistanceUp to 100 m
- IR Intensity And AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy± 8 °C (±14.4 °F)
- Video And Audio
- Main Stream
Optical channel
50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Thermal channel
25 fps (1280×720P, 704×576, 352×288, 384×288)
- Sub-Stream
Optical channel
50 HZ: 25 fps (704 × 576, 352 × 288)
60 HZ: 30 fps (704 × 480, 352 × 240)
Thermal channel
25 fps (704 × 576, 352 × 288, 384 × 288)
- Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
- 1, 3.5 mm Mic in/Line in interface
- Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
Communication Interface
- 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
- 1, RS-485 interface (half duplex)
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block
PoE (802.3af, class 3)
- Power Consumption
24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W
12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W
24VDC: 0.4A, max 9.5W
PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W
- Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
- Weight1.82 kg (4.01 lb)
