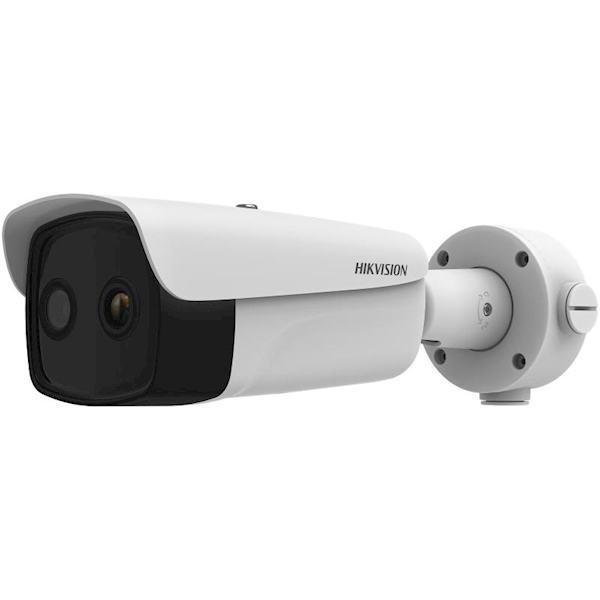

DS-2TD2637T-10/QY , Bi spectrum thermografische bullet 10mm

Prijs per stuk

Inloggen

Aantal

-

+

Belangrijke Kenmerken

Resolutie 384 × 288, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
Analyse van video-inhoud: classificatie van voertuig/mens
Temperatuuruitzonderingsalarm voor brandpreventie, -20 °C tot 550 °C (-4 °F tot 1022 °F), Max. (± 2 °C, ± 2%)
Rookdetectie-algoritme
Beeldverwerkingstechnologie: lineair, histogram, zelfaanpassende thermische AGC-modus, DDE, 3D DNR

Hikvision, Bi spectrum thermografische bullet 10mm

Thermal Module

Optical Module

Image Sensor1/2.7" Progressive Scan CMOS
Resolution2688 × 1520
Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Field Of View84° × 44.8° (H × V)
Focal Length4 mm
Shutter Speed1 s to 1/100,000 s
White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night ModeIR Cut Filter with Auto Switch
WDR120 dB
ApertureF 1.6

Image Effect

Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

Illuminator

Smart Function

VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range- 20 °C to 550 °C (- 4 °F to 1022 °F)
Temperature AccuracyMax (± 2 °C, ±2 %)

Video And Audio

Network

ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Simultaneous Live ViewUp to 20 channels
User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
ClientiVMS-4200, Hik-Connect

Interface

Alarm Input2, alarm input (0-5 VDC)
Alarm Output2, alarm output (alarm response actions configurable)
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface

Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

1, RS-485 interface (half duplex)
Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC

General

Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block

PoE (802.3af, class 3)
Power Consumption
24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W

12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W

24VDC: 0.4A, max 9.5W

PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W
Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)

Humidity: 95% or less
Protection Level
IP67 Standard

TVS 4000V lightning protection, surge protection, voltage transient protection

IK10-rated housing
Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
Weight1.82 kg (4.01 lb)

Detection Range Table/Smart Function Range
