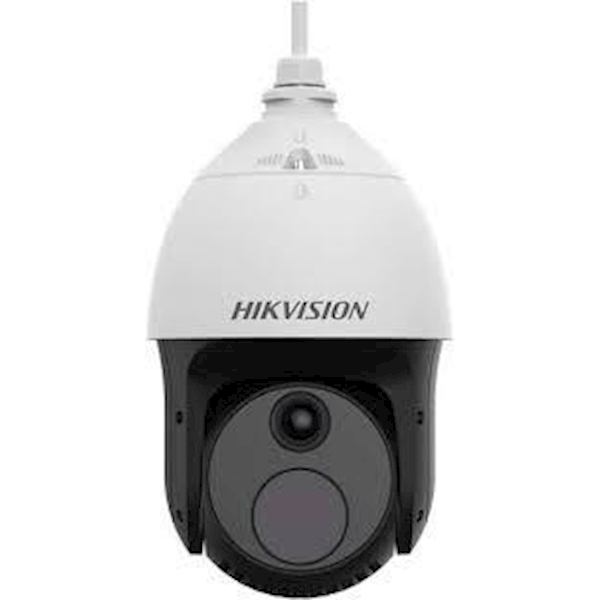

DS-2TD4237-10/V2, Thermische met Optische Bi-spectrum PTZ, 10mm thermische lens

Prijs per stuk

Inloggen

Aantal

Belangrijke kenmerken:

Slimme functie (thermische beeldvorming)

Toonaangevende beeldverwerkingstechnologie: Adaptive AGC, DDE, 3D DNR, NETD minder dan 40 mK (25 ° C), F # = 1,0
Slimme tracking: Panorama-tracking, Event-tracking en Multi-scene patrouille-tracking
Slimme tracking-koppeling: thermische weergave en optische weergave
Krachtig algoritme voor gedragsanalyse: lijnoverschrijding, inbraak, toegang tot en uitgang van de regio
Betrouwbare alarmfunctie voor temperatuuruitzonderingen
Geavanceerd algoritme voor branddetectie

Functie warmtebeeldmodule

384 × 288 (de resolutie van het outputbeeld is 1280 × 720) resolutiesensor, zeer gevoelige sensor, ondersteunt contrast aanpassing
Sluiter aanpassing in verschillende modi
3D DNR, 15 paletten met instelbare kleuren, verbetering van beelddetails

Thermal & Optical Bi-spectrum Network Speed Dome

Thermal Module
Image sensor:		Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution:		384 × 288 (the resolution of output image is 1280 × 720)
Detector Pitch:		17um
Response Wavebond:		8um to 14um
NETD:		< 40mk(@25°C,F#=1.0)
Lens (focal length):		10mm
MRAD:		1.70 mrad
Field of View:		37.7° × 28.7° (H × V) (H × V)
Min. Focusing Distance:		1.2m
F number:		1.0

Optical Camera
Image Sensor:		1/2.8’’ Progressive Scan CMOS
Min. Illumination:		Color: 0.05 Lux @(F1.2,AGC ON), B/W: 0.01 Lux @(F1.2, AGC ON)
Max. Image Resolution:		1920 × 1080
Focal Length:		4.8-153mm
Field of View:		horizontal FOV 58.4° to 2.14°, vertical FOV 33.8° to 1.2°, diagonal FOV 65.6° to 2.46°
Aperture Range:		F1.2-F4.4
Focus Mode:		Auto / Semiautomatic / Manual
WDR:		120dB
Shutter Speed:		1 to 1/100,000s
White Balance:		Auto /Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night:		IR Cut Filter
Privacy Mask:		24 privacy masks programmable; optional multiple colors
Optical Defog:		Yes
Enhancement:		3D DNR

PTZ
Proportional Zoom:		Support
Presets:		300
Patrol Scan:		8; Up to 32 Presets Per Patrol
Pattern Scan:		4; More Than 10 Minutes Per Pattern
Power Off Memory:		Support
Park:		Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT Status:		Turn On/Turn Off
Scheduled Task:		Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Smart Function
VCA:		Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene
Temperature Measurement:		Support 3 temperature measurement rule types, over 256 presets as scene, 21 rules of each scene (10 points, 10 regions, and 1 line)
Temperature Range:		-20 ° C to 150 ° C (-4 ° C to 302 ° F)
Temperature Accuracy:		±8 ° C (14.4 ° F)
Fire Detection:		Support 10 fire points

Infrared
IR Distance:		Up to 100m
IR IntenSity and Angle:		Auto Adjust

Network
Audio Compression:		G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous live view:		Up to 20-ch
User/Host Level:		Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures:		User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration
Reset:		1 Reset Button
Alarm Action:		Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Alarm Input:		Up to 7-ch Input (0-5V DC)
Alarm Output:		2-ch relay outputs, alarm response actions configurable
Audio Input:		1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output:		Linear Level; Impedance: 600Ω
Onboard Storage:		Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording
Ethernet:		1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS-485 interface
Analog Video Output:		1.0V [p-p]/75Ω, PAL/NTSC/BNC
RS485:		Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
Application Programming:		Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Client:		iVMS-4200
Web Browser:		IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)

General
Wiper:		Yes
Power Consumption:		30W
Power:		24V AC, 60W
Menu Language:		English
Working Temperature/ Humidity:		-30 °C to 60 °C (-22 °F to 140 °F)
Protection Level:		IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions:		305 mm × 185 mm × 163 mm (12.01 " × 7.28" × 6.42 ")
Weight:		3.9Kg (8.6lb)

Smart Functions Range
Lens (focal length):		10mm
VCA range (Vehicles):		300m
VCA range (humans):		100m
Temperature measurement (Object:2*2m):		234m
Temperature measurement (Object:1*1m):		118m
Fire Detection (Object:2× 2 m):		588m
Fire Detection (Object:1× 1 m):		294m

Wide Range Coverage
Detection range (Vehicles):		902m
Detection range (Humans):		294m
Recognition range (Vehicles):		225m
Recognition range (Humans):		74m
Identification range (Vehicles):		113m
Identification range (Humans):		37m

DS-2TD4237-10 V2.pdf
