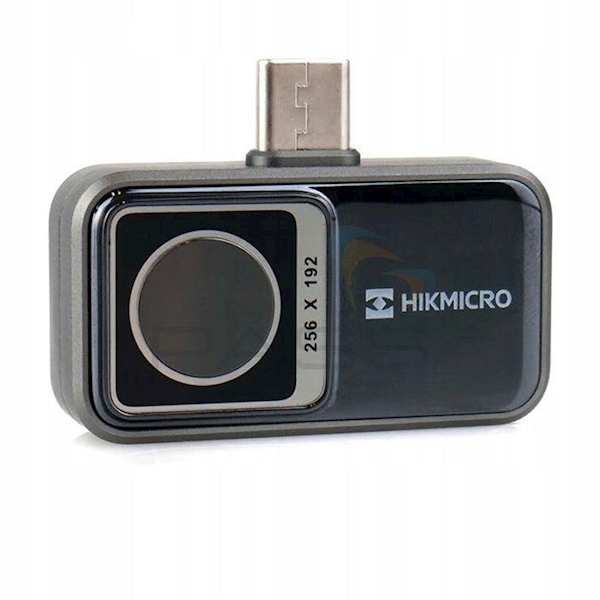

HIKMICRO Mini2 V2 Smartphone Camera
IR Resolution
256 × 192 (49,152 pixels)
SuperIR
Yes, on captured images and live view
NETD
< 40 mK (@ 25 °C, F#=1.0)
Image Frequency
25 Hz
Detector Pitch
12μm
Spectral Range
7.5 to 14 μm
Focal Length
3.5 mm
F-number
F1.0
Field of View (FOV)
50° × 37.2°
Min. Focus Distance
0.2 m (0.66 ft)
Focus Mode
Focus Free
Image Display
Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined
Image Modes
Thermal, PIP
Object
Temperature Range
Range
-20°C to 150°C(-4° F to 302°F)
Range
100°C to 400°C(212°F to 752°F)
Accuracy
Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools
Center Spot, Hot Spot, Cold Spot, User-definable: 3 spots, 3 rectangles and 1 line .
Level and Span Mode
Auto/Manual
Power Consumption
360 mW
Interface
USB-C Android, USB-C iOS, Lightning iOS (Includes a Lightning to USB-C adapter)
Device Compatibility
iOS (version 14 and later)
Android (version 7 and later) smartphones and tablets, or Windows devices
Software Compatibility
HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows
Protection
Level IP40
Drop Test Height
1m (3.28 ft)
Working Temperature Range
-10°C to 50°C (14°F to 122°F)
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
Dimensions
42 × 22.5 × 11.2 mm
Weight Approx.
20gr. (0.044 lb)
