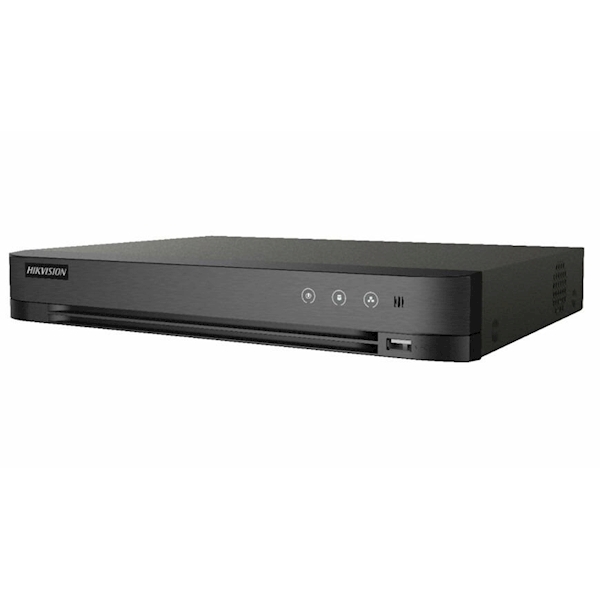

4-ch 5 MP 1U H.265 AcuSense DVR
Motion Detection 2.0
Perimeter Protection
- Line Crossing Detection/Intrusion Detection8-ch
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate
- Main stream:
- 8 MP@15 fps/8 MP@12 fps/3K@20 fps/5 MP@20 fps/5 MP@12 fps/3 MP@18 fps
- MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 16 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
Video And Audio
- IP Video Input
- 8-ch (up to 16-ch)
- Up to 8 MP resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input8-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- otal Bandwidth128 Mbps
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS InputPAL/NTSC
CVBS Output
- 1-ch, BNC (1.0 Vp-p, 75 Ω),
- resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback8-ch
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDTVI Input8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60
- ps, 720p@50 fps, 720p@30 fps, 720p@25 fps
- Video Output ModeHDMI/VGA independent output
- AHD Input5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input
- 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- 8-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection64
- Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
- SATA2 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
USB Interface
- Front panel: 1 × USB 2.0
- Rear panel: 1 × USB 2.0
- Alarm In/OutN/A (optional to support)
General
- Power Supply12 VDC, 3.33 A
- Consumption≤ 15 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- ≤ 3.1 kg (without HDD, 6.9 lb.)
