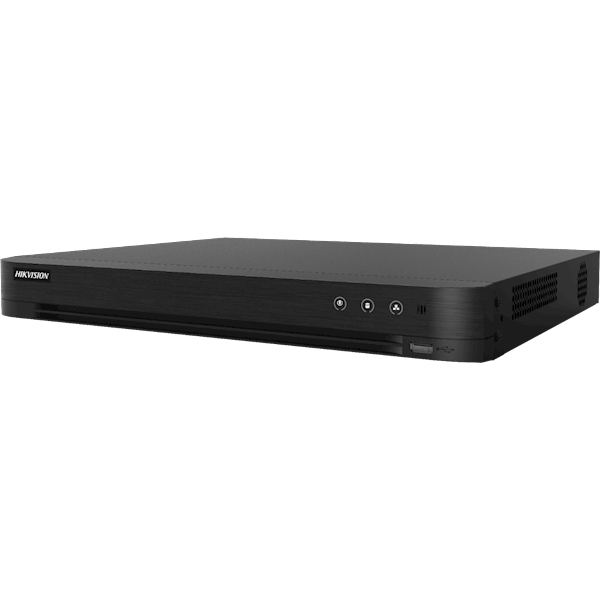

8-ch 5 MP 1U H.265 AcuSense DVR
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding ResolutionMain stream:
- 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps
- 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream:
- WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
Video And Audio
- IP Video Input4-ch (up to 12-ch)
- Up to 8 MP resolution
- Enhanced IP mode on:
- 8-ch (up to 16-ch), each up to 4 Mbps
- Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI OutputHDMI:1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA:1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz
- HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),
- resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback8-ch
- HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
- AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection64
- Network Interface1,RJ45 10M/100M/1000M self-adaptive
- Ethernet interface
- Auxiliary Interface
- SATA2 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface1 × USB 2.0;
- 1 × USB 3.0
- Alarm In/OutN/A
General
- Power Supply12 VDC
- Consumption≤ 15 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- ≤ 2 kg (4.4 lb)
