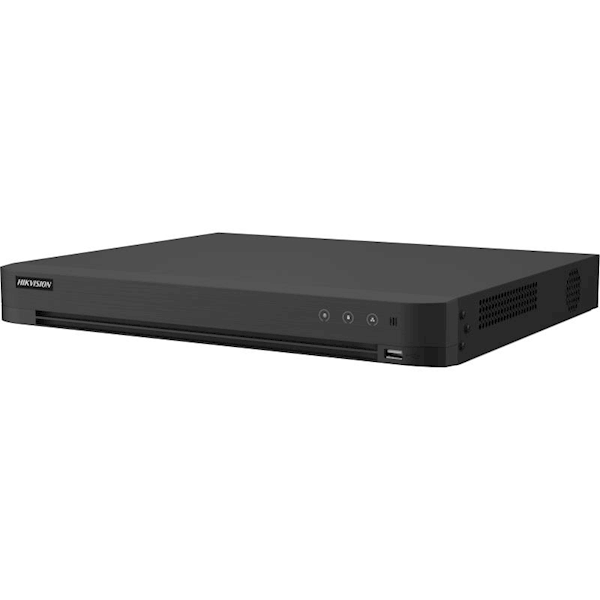

Hikvision, 5MP DVR Acusense
Facial Recognition
- Face Picture Library
Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
- Face Picture Comparison (Captured From Camera)4-ch face picture comparison alarm (HD analog camera)
Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
- Human/Vehicle AnalysisUp to 8-ch (advanced model)
Facial Detection
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-StreamSupport main stream or sub stream
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
Video And Audio
- IP Video Input
16-ch (up to 32-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback16-ch
- HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5M(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input
1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)
16-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Decoding
- Decoding Capabilityup to 24-ch 1080P@30fps
Network
Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 12 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
Front panel: 1 × USB 2.0
Rear panel: 2 × USB 3.0
- Alarm In/OutN/A (optional to support)
General
- Power Supply12 VDC, 5 A
- Consumption≤ 60 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch)
- Weight≤ 2.1 kg (4.6 lb)
