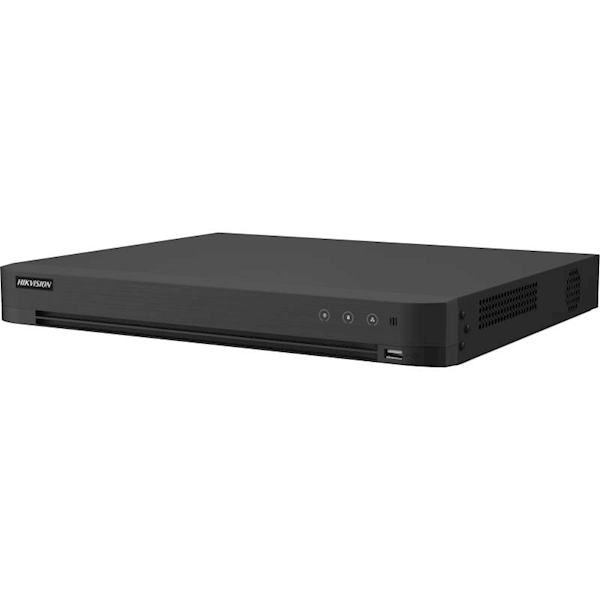

Hikvision, 16 kanaals 5 MP 1U H.265 AcuSense POC DVR
Specificaties
Gezichtsherkenning
Gezichtsbeeldbibliotheek:
Tot 16 gezichtsbeeldbibliotheken
HDD-schade leidt niet tot verlies van de bibliotheek, omdat deze is geback-upt op HDD en flash
Gezichtsvergelijking (opgenomen via camera):
4-kanaals gezichtsvergelijkingsalarm (HD-analoge camera)
Bewegingsdetectie 2.0
Mens/Voertuiganalyse:
Deep learning-gebaseerde bewegingsdetectie 2.0 is standaard ingeschakeld voor alle analoge kanalen
Kan mensen en voertuigen classificeren en vermindert valse alarmen door objecten zoals bladeren en lichten
Snelle zoekfunctie op basis van object- of gebeurtenistype
Perimeterbeveiliging
Mens/Voertuiganalyse: Tot 8 kanalen (geavanceerd model)
Gezichtsdetectie
Gezichtsdetectie en -opname:
Detectie en zoeken van gezichtsbeelden
4-kanaals gezichtsbeeldopname
Video en Audio
Video-ingangen
IP-video-ingang: 16 kanalen (uitbreidbaar tot 32 kanalen), elk tot 8 MP
Analoge video-ingang: 16 kanalen, BNC-interface (1.0 Vp-p, 75 Ω), ondersteunt coaxitron-verbinding
PoC-camera-ingang: Ondersteunt Hikvision PoC-camera’s
Video-uitgangen
HDMI-uitgang:
1 kanaal, ondersteunde resoluties:
4K (3840 × 2160) @ 30Hz
2K (2560 × 1440) @ 60Hz
1920 × 1080 @ 60Hz
1280 × 1024 @ 60Hz
1280 × 720 @ 60Hz
VGA-uitgang:
1 kanaal, ondersteunde resoluties:
1920 × 1080 @ 60Hz
1280 × 1024 @ 60Hz
1280 × 720 @ 60Hz
CVBS-ingang: PAL/NTSC
CVBS-uitgang:
1 kanaal, BNC (1.0 Vp-p, 75 Ω)
Resolutie:
PAL: 704 × 576
NTSC: 704 × 480
Synchrone weergave: 16 kanalen
Ondersteunde videoformaten voor analoge ingangen
HDTVI-ingang:
8 MP (3840 × 2160) @ 12/15 fps
3K (2960 × 1665) @ 25/20 fps
3K (3328 × 1504) @ 20 fps
5 MP (2560 × 1944) @ 20 fps
4 MP (2560 × 1440) @ 25/30 fps
1080P @ 25/30 fps
720P @ 25/30 fps
AHD-ingang:
5 MP (2560 × 1944) @ 20 fps
4 MP (2560 × 1440) @ 25/30 fps
1080P @ 25/30 fps
720P @ 25/30 fps
HDCVI-ingang:
8 MP (3840 × 2160) @ 12/15 fps
3K (2880 × 1620) @ 25 fps
5 MP (2592 × 1944) @ 20 fps
4 MP (2560 × 1440) @ 25/30 fps
1080P @ 25/30 fps
720P @ 25/30 fps
Audio
Audio-uitgang: 1 kanaal, RCA (Lineair, 1 KΩ)
Audio-ingang:
4 kanalen (tot 16 kanalen optioneel), RCA (2.0 Vpp, 1 KΩ)
16 kanalen via coaxkabel
Tweerichtingsaudio: 1 kanaal, RCA (2.0 Vp-p, 1 KΩ) (via audio-ingang)
Opname
Videocompressie: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Coderingresolutie:
8 MP, 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF
Frame rates:
Hoofdstream:
8 MP @ 8 fps
3K @ 12 fps
5 MP @ 12 fps
4 MP @ 15 fps
8 MP Lite @ 15 fps
3 MP @ 18 fps
1080p/720p/WD1/4CIF/VGA/CIF @ 25 fps (P) / 30 fps (N)
Substream:
WD1/4CIF/CIF @ 25 fps (P) / 30 fps (N)
Videobitrate: 32 Kbps tot 10 Mbps
Dual-streaming: Ondersteuning voor hoofd- of substream
Streamtypes: Video, Video & Audio
Audiocompressie: G.711u
Audiobitrate: 64 Kbps
Decodering
Decoderingcapaciteit: Tot 24 kanalen 1080P @ 30 fps
Netwerk
Totale bandbreedte: 256 Mbps
Netwerkprotocollen:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Maximale externe verbindingen: 128
Netwerkinterface: 1 × RJ45 10/100/1000 Mbps zelfaanpassende Ethernet-interface
Hulpaansluitingen
SATA: 2 SATA-interfaces
Opslagcapaciteit: Tot 12 TB per schijf
Seriële interface: RS-485 (half-duplex)
USB-interface:
Voorpaneel: 1 × USB 2.0
Achterpaneel: 2 × USB 3.0
Alarm in/uit: 4/1
Algemeen
Voeding: 100 tot 240 VAC, 50 tot 60 Hz
Stroomverbruik: ≤ 20 W (zonder HDD)
Werktemperatuur: -10°C tot +55°C
Luchtvochtigheid: 10% tot 90%
Afmetingen (B × D × H): 384 × 313 × 52 mm
Gewicht: ≤ 2,1 kg
