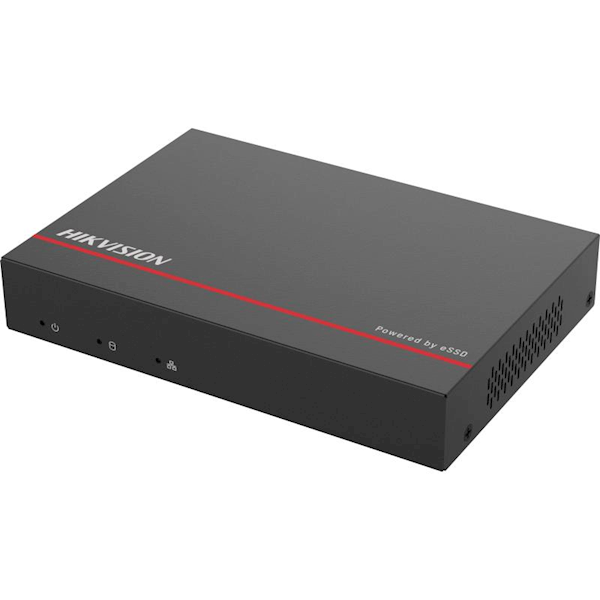

Hikvision mini NVR 1TB 4 kanaals, 4POE
Video And Audio
- IP Video Input8-ch
- Incoming Bandwidth60 Mbps
- Outgoing Bandwidth60 Mbps
- HDMI Output1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz
Decoding
- Decoding FormatH.265,Smart265,H.264,Smart264
- Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Decoding Capability4-ch@1080p (25 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
Network
- Remote Connection128-ch
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP,NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
- Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 58 W
- StandardIEEE 802.3 af/at
Auxiliary Interface
- Capacity1TB SSD (pre-installed)
- USB InterfaceRear panel: 2 × USB 2.0
General
- Power Supply48VDC,1.36A
- Consumption≤ 10 W (with SSD)
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)225 ×122 ×27 mm (8.9" × 4.8" × 1.1")
- Weight≤ 0.57 kg
Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
