DS-9664NI-M8

Prijs per stuk

Inloggen

Opties

Opties
	Inbouwservice van 1 harde schijf

Opties
	3 jaar advanced garantie + data recovery
	Seagate Skyhawk 1TB
	Seagate Skyhawk 2TB
	Seagate Skyhawk 3TB
	Seagate Skyhawk 4TB
	Seagate Skyhawk 6TB

Aantal

Belangrijke kenmerken

Tot 64-kanaals IP-camera-ingangen
Tot 2-kan@32 MP/2-kan@24 MP/4-kan@12 MP/8-kan@8 MP/16-kan@4 MP/32-kan@1080p decoderingscapaciteit
Tot 400 Mbps inkomende bandbreedte en 400 Mbps uitgaande bandbreedte
2 HDMI (verschillende bron) en 2 VGA (verschillende bron) interfaces, 8K of dubbele 4K video-uitgangen
Ondersteunt speciale camera's, waaronder een camera voor het tellen van mensen, een ANPR-camera (automatische nummerplaatherkenning) en een fisheye-camera
Geavanceerde streamingtechnologie maakt vloeiende liveweergave mogelijk in slechte netwerkomstandigheden
Ondersteunt RAID 0, 1, 5, 6, 10 en N+M hot spare voor nog betrouwbaardere gegevensopslag, vermijdt effectief risico's op gegevensverlies

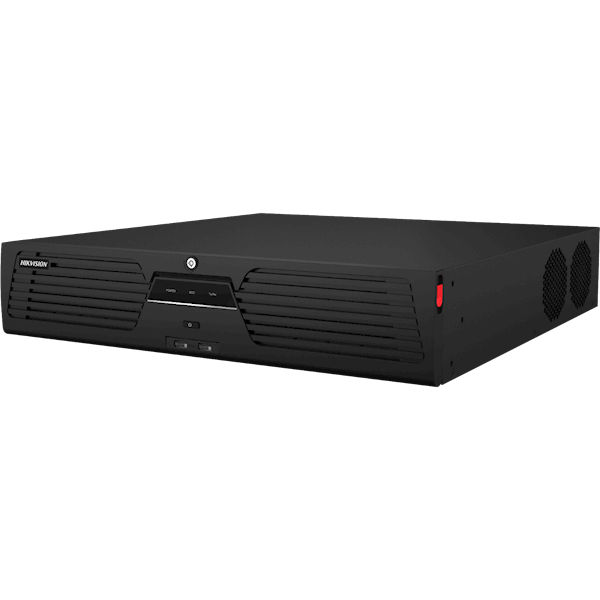

64-ch 2U 4K NVR

Video And Audio

IP Video Input64-ch
Incoming Bandwidth400 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 1 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding FormatH.265+/H.265/H.264+/H.264
Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding Capability2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
Serial Interface1 RS-485 (full-duplex), 1 RS-232
SATA8 SATA interfaces
ESATA1 eSATA interface
CapacityUp to 14 TB capacity for each disk
Alarm In/Out16/9
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output

General

Certification

9664m8.pdf
