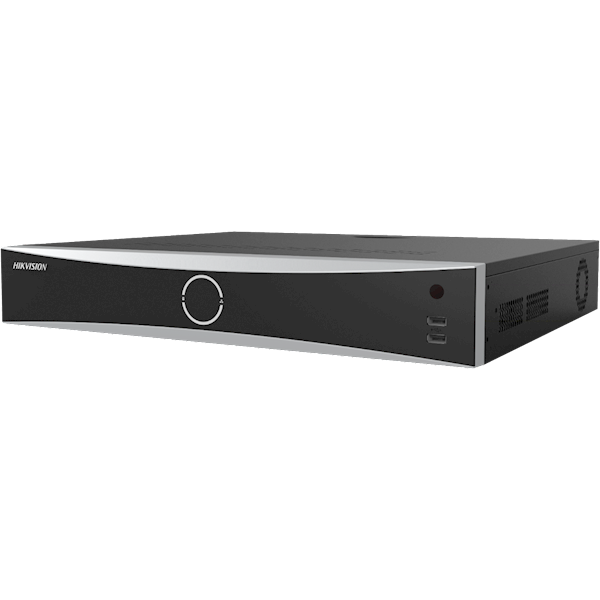

Hikvision 32 kanaals Acusense NVR
Facial Recognition
- Facial Detection And Analytics Face picture comparison, human face capture, face picture search
- Face Picture Library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
- Face Picture Comparison 4-ch face picture comparison alarm
- Facial Detection And Analytics Performance 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
Motion Detection 2.0
- Human/Vehicle Analysis 32-ch
Perimeter Protection
- Human/Vehicle Analysis Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total
Video And Audio
- IP Video Input 32-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Incoming Bandwidth 256 Mbps
- Outgoing Bandwidth 256 Mbps
- HDMI 1 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
- HDMI 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
- VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
- CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
- Decoding Format 265+/H.265/H.264+/H.264/MPEG4
- Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Playback Mode Normal/Smart, Event, Tag, Eternal File
- Synchronous Playback 16-ch
- Live View Window Division 1/2/4/6/8/9/16/25/32/36
- Aux Port Window Division 1/2/4/6/8/9/16/25/32/36
- Decoding Capability 16-ch @ 1080p (30 fps)
- Dual-Stream Recording Support
- Stream Type Video, Video & Audio
- Audio Compression 711ulaw/G.711alaw/G.722/G.726/MP2L2
Network
- Remote Connection 128
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
- Serial Interface RS-485 (half-duplex), RS-232, Keyboard
- SATA 4 SATA interfaces supporting hot-plug
- Capacity Up to 10 TB capacity for each disk
- ESATA1 eSATA interface
- Alarm In/Out 16/4
- USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
General
- Power Supply 100 to 240 VAC, 50 to 60 Hz
- Consumption ≤ 30 W (without HDD)
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Chassis 19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H) 445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
- ≤ 5.6 kg (12.3 lb)
Certification
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
