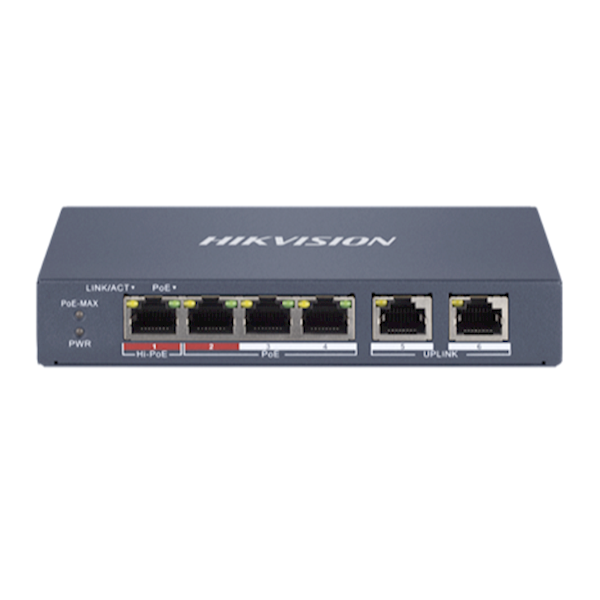

Hikvision 6 Poorts 4x POE Smart Managed Switch
Technische specificaties:Network Parameters
- Port Number: 4× 10/100Mbps PoE ports, and 2× 10/100Mbps RJ45 ports
- Forwarding Mode: Store-and-forward switching
- Working Mode: Standard mode (default) and Extend mode
- Standard: IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
- MAC Address Table: 2K
- Internal Cache: 768 Kbits
- Switching Capacity: 1.2 Gbps
- Packet Forwarding Rate: 0.8928 Mpps
- High Priority Ports: Ports 1 to 2
PoE Power Supply
- PoE Standard: Ports 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt and Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-), 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port: Hi-PoE:Port 1 (PoE: Ports 2 to 4)
- Max. Port Power: Port 1:60W, Ports 2 to 4:30W
- PoE Power Budget: 60 W
Software Function
- Port Configuration: Support rate, flow control, and switch configuration
- Device Maintenance: Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters
General
- Dimension (W × H × D): 145mm × 25.6mm × 68.45mm (5.7" × 1" × 2.69")
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Installation Mode: Wall mounting, desk mounting
- Gross Weight: 0.645 kg (1.42 lb)
- Net Weight: 0.245 kg (0.54 lb)
- Power Consumption In Idle: 2W
- Shell: Metal material, IP40
- Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Operating Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 1.35 A
- Max. Power Consumption: 65W
- Relative Humidity: 5% to 95% (no condensation)
Approval
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
