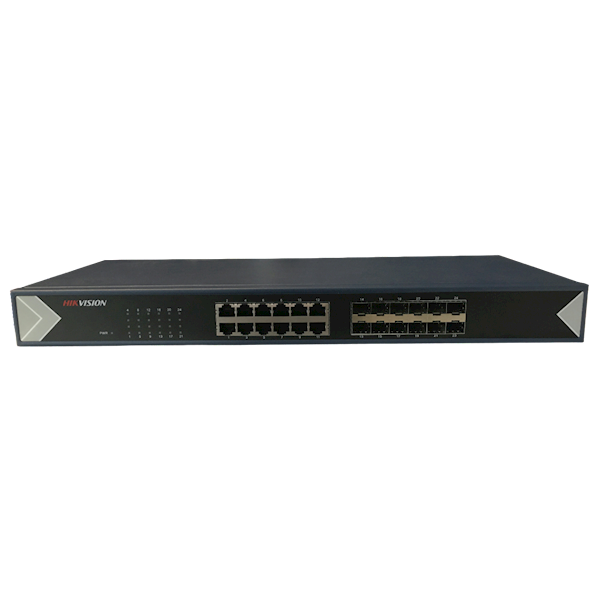

24 Port Gigabit Unmanaged Switch
Network Parameters
- Ports 12 × Gigabit RJ45 ports, and 12 × Gigabit fiber optical ports
- Poort TypeElectrical ports: RJ45, Full/half duplex, MDI/MDI-X self-adptive,Fiber optical port: SFP packaging
- StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
- Forwarding ModeStore-and-forward switching
- MAC Address Table16 K
- Switching Capacity48 Gbps
- Packet Forwarding Rate35.7 Mpps
- Internal Cache12 Mbit
General
- Dimensions (W × H × D)440.00 mm × 44.50 mm × 186.50 mm (17.30'' × 1.80'' × 7.30'')
- Shell Metal material
- Gross Weight 3.30 kg (7.28 lb)
- Net Weight 2.60 kg (5.73 lb)
- Operating Temperature–5 °C to 50 °C (23 °F to 122 °F)
- Operating Humidity 5% to 95% (no condensation)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Storage Humidity 5% to 95% (no condensation)
- Stroomvoorziening 220 VAC
- Power Consumption≤ 30 W
Approval
- EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 14)
- SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2024)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2013)
