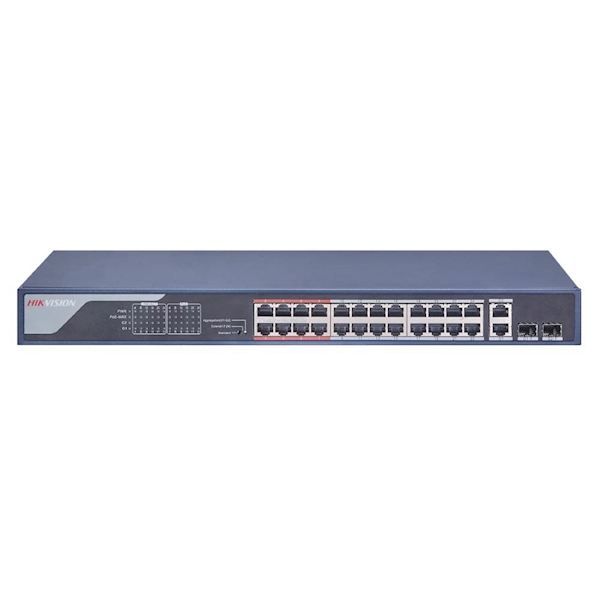

Hikvision 100 Mbps POE switch unmanaged, 24 ports
Model: DS-3E0326P-E(B)
Network parameters:
Port number: 24 × 100 Mbps PoE ports, 2 × 1000 Mbps combos
Port type: RJ45 port, full duplex, MDI/MDI-X adaptive
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode: Store-and-forward switching
Working mode: Standard mode (default); Extend mode
High priority ports: Ports 1 to 8
Ports for long-distance transmission: Ports 17 to 24
Link aggregation port: G1 to G2
MAC address table: 4 K
Switching capacity: 8.8 Gbps
Packet forwarding rate: 6.547 Mpps
Internal cache: 2.75 Mbits
PoE power supply
PoE standard: IEEE 802.3af, IEEE 802.3at
PoE power pin:
Ports for long-distance transmission (17-24) support 8-core power
supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous
power supply:
Ports for close-range transmission: (1-16) support 4-core power
supply, Ethernet cable 1/2/3/6 provide power supply
PoE port Ports: 1 to 24
Max. port power: 30 W
PoE power budget: 370 W
Max. power consumption: 400 W
General
Shell Metal: material
Gross weight: 3.62 kg (7.98 lb)
Net weight: 2.75 kg (6.06 lb)
Dimension (L × H × D): 440 mm × 44 mm × 220.8 mm (17.3” × 1.73” × 8.7”)
Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity: 5% to 95% (no condensation)
Storage humidity: 5% to 95% (no condensation)
Power supply: 100 to 240 VAC, 50/60 Hz, Max. 6.5 A
Power consumption: in idle 30 W
Approval
EMC:
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN
61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015);
RCM: (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety:
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation
(EC) No 1907/2006)
