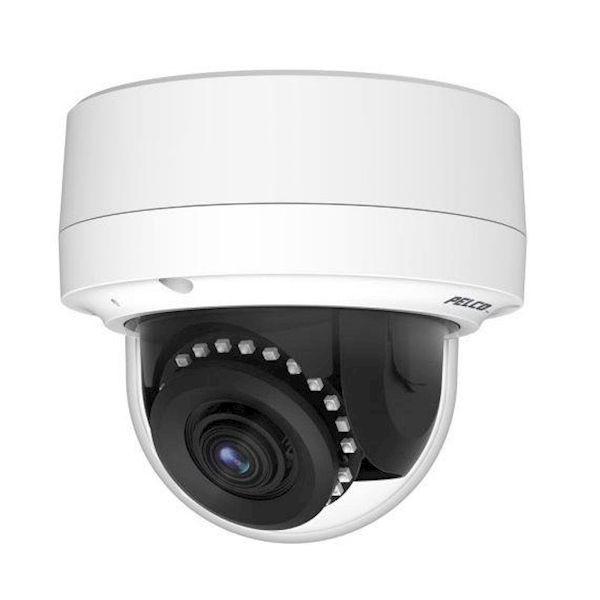

Pelco Sarix Pro Dome 2MP, 2,8-12mm
CAMERA
- Imaging Device 1/2.8-inch
- Imager Type CMOS
- Imager Readout Progressive scan
Highest Resolution
- 5MP 2592 x 1944 (5.0 MP)
- 3MP 2048 x 1536 (3 MP)
- 2 MP 1920 x 1080 (2 MP)
- 1 MP 1280 x 960 (1 MP)
- Electronic Shutter Range 1/10,000 to 1 sec
- True Wide Dynamic Range 120 dB, per IEC62676
- White Balance Range: 2,000° to 10,000°K; Selectable ATW
- (Auto Tracing White Balance), Auto, and Manual
- 3D Noise Reduction Yes (ON/OFF selectable)
- Day/Night Capabilities Mechanical IR cut filter (ON/OFF/AUTO), with different set points on lux
- IR Illumination 850 nm adaptive IR, up to 50 meters; auto ON in night mode, or OFF Signal to Noise Ratio ≥50 dB
LENS
- Lens Type Built-in; varifocal
- Focal Length f/1.4, 2.8 ~ 12 mm nominal
- Focus Autofocus, motorized
- Zoom Remote
- Auto Iris Type DC-Iris
VIDEOVideo Streams Up to three simultaneous streams, the second stream and third stream are variable based on the setup of the primary streamVideo Overlay Camera name, time, date, and customizable text with multiple supported languages. Embedding of custom images and logos supported.Video Encoding H.265, H.264 High or Main profiles; and MJPEGBit Rate Control Constant bit rate (CBR), constrained variable bit rate (CVBR) with configurable maximum valueOrientation Modes Corridor Mode, Mirror Mode, Flip Mode, Electronic Image Rotation 90°, 180°, and 270°Window Blanking 8 configurable windowsFlicker Control Selectable 50 Hz or 60 Hz modes
ELECTRICAL
- Network Port RJ-45 connector for 10/100Base-TX
- Power Input IEEE802.3af PoE (Indoor), IEEE802.3at
(Environmental)
- 18 ~ 32 VAC,
- 12 ± 10% VDC
- Local Storage Micro SDHC and SDXC card, 2 TB
- addressable, 128 GB or more testable
Alarm
- Input 1, PhotoMOS™ relay (30 V, 1 A)
- Output 1, PhotoMOS™ relay (30 V, 1 A)
- Triggers Unsupervised mode that detects switch
- closures (Normally Open and Normally Closed)
- Analog Output IMP531-1ERS only
ENVIRONMENTAL
- Operating Temperature
- Environmental –40° to 60°C (–40° to 140°F)
- Indoor –10° to 55°C (14° to 131°F)
- Storage Temperature –40° to 70°C (–40° to 158°F)
- Operating Humidity 5% to 95%, RH condensing (environmental models)
- 5% to 90%, RH noncondensing (indoor models)
- Storage Humidity 20% to 80%, RH noncondensing
- Shock and Vibration
- Resistance IEC 60068:2-6 and 2-27
- Impact Resistance IK10 (20 Joules)
- Ingress Protection IP64 (Indoor models) & IP66/67, Type 4X (Environmental models)
GENERAL
- Construction Aluminum; polycarbonate bubble
- Finish RAL 9003
Weight
- Unit 0.86 kg (1.90 lb)
- Shipping 1.20 kg (2.65 lb)
- Pan/Tilt Adjustment Manual Pan 0° ~ 370° Tilt –15°~ –90° Rotate 0° ~ 355°
NETWORK
- Supported Protocols TCP/IP, UDP/IP (unicast, multicast IGMP)
- UPnP,DNS, DHCP, RTP, RTSP,NTP, IPv4, IPv6,
- SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205,
- ARP,DDNS,ICMP,IGMP,RTCP,SFTP,SIP,TLS/TTLS, WS-discovery
Users
- Unicast Up to 5 simultaneous users depending on resolution settings (3 guaranteed streams)
- Multicast Unlimited users H.264/H.265
- Security Access Password protected, HTTPS, IEEE 802.X,
- Digest Authentication, IP Filtering
- Software Interface Web browser view and setup
INTEGRATION
- Video Management VideoXpert;
- VX Toolbox;
- Endura 2.0 (or later);
- Digital Sentry 7.3 (or later);
- Open API Third-party VMS through Pelco API, ONVIF
- Profile S, Profile G, Profile Q, and Profile T Mobile Application Pelco Mobile
