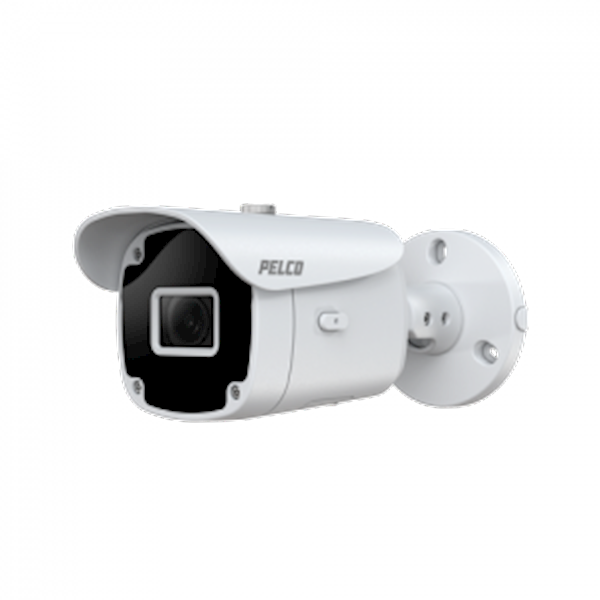

Pelco Sarix Value Bullet 5MP, Varifocal 3-9mm
Beeld Sensor
- 1/2.9" Progressive CMOS (IBV229-1ER); 1/2.7" Progressive CMOS
- (IBV529-1ER)
- Maximum Resolution 1920x1080 (2MP) (IBV229-1ER); 2560x1920 (5MP) (IBV529-1ER)
Lens Type
- Motorized, Vari-focal, Remote Focus
- Focal Length f = 3.4 ~ 9.4 mm
- Iris Type Fixed iris
- Field of View IBV229-1ER
- 93° ~ 32° (Horizontal)
- 50° ~ 18° (Vertical)
- 110° ~ 37° (Diagonal)
- IBV529-1ER
- 30° ~ 88° (Horizontal)
- 23° ~ 65° (Vertical)
- 8° ~ 115°(Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
- Day/Night Yes with removable IR cut filter
- IR Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR
technology
- Minimum Illumination 0.07 lux Color (IBV229-1ER); 0.2 lux Color (IBV529-1ER)
- Tilt Range 90°
- Rotation Range 180°
- Pan/Tilt/Zoom Functionalities Digital PTZ: 48x digital zoom
- Storage Seamless Recording to MicroSD/SDHC/SDXC card
Built-in Installation Aids Focus and Zoom can be configured by the web client.C5040S-A | 06/29/21 3Sarix Value® Series IR Environmental Bullet Cameras (IBV229-1ER, IBV529-1ER)Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 1920x1080 (IBV229-1ER); 20 fps @ 2560x1920 (IBV529-1ER)
- Maximum Streams 3 video streams (Up to 8 configurable profiles)
- S/N Ratio 50 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Pelco Smart Compression
- Image Settings General settings: video title and time stamp overlay, video orientation (flip,mirror, rotation), day/night settings
- Illuminators: illuminators, Adaptive IR;
- Image settings: white balance, image adjustment (brightness, contrast,
- saturation, sharpness, gamma curve), defog, 3DNR
- Exposure: BLC, HLC, exposure control, exposure level, exposure time,
- gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile
Network
- Users Live viewing for up to 10 clients
- Security Access list, digest authentication, HTTPS, IEEE 802.1x
- password protection, signed firmware, user access log, user account management
- Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP,
- HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP),
- RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- CAT5e and CAT6 cables which are compliant with the 3P/ETL standard be used
- ONVIF Profile G, S, T supported, specification available at www.onvif.org
Cybersecurity
- Sarix Value Series cameras implement several cybersecurity measures to protect device access
- HTTPs using TLS1.2, AES encryption with 256 bit keys, digital signature for firmware upload
- denial of access to shell, 802.1X, camera firewall with whitelist/blacklist address support
- 2048 RSA key pairs, X.509 v3 digital certificates with SHA256 signature hash
- C5040S-A | 06/29/21 4
- Sarix Value® Series IR Environmental Bullet Cameras (IBV229-1ER, IBV529-1ER)
Alarm and Event
- Event Trigger Camera tampering detection
- manual trigger, motion detection
- periodical trigger
- recording notification, SD card life expectancy
- Event Action Event notification via email, HTTP, FTP, NAS server, SD card
- push notification file upload via email
General
- Connectors RJ-45 cable connector f or 10/100Mpbs Network/PoE connection
- Power Input IEEE 802.3af PoE Class 3
- Power Consumption Max. 12.95 W/9 W (IR on/off)
- Dimensions 85 x 85 x 214.5 mm
- Weight 738 g
- Body Construction Powder coated aluminum (RAL 9003), sunshield polycarbonate
- Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
- Working Temperature:-30°C ~ 60°C (-22°F ~ 140°F)
- Humidity 90%
System Requirements
- Operating System Microsoft Windows 10/8/7
- Web Browser Chrome, Firefox, Edge
- Other Players VLC
Included Accessories
- Others Quick Start Guide, alignment sticker, screw pack, cable gland
Models
- Resolution Model Number Lens Description
- 2 MP IBV229-1ER 3 ~ 9 mm Sarix Value Environmental IR Bullet
- 5 MP IBV529-1ER 3 ~ 9 mm Sarix Value Environmental IR Bullet
