Camera-systemen

Terug

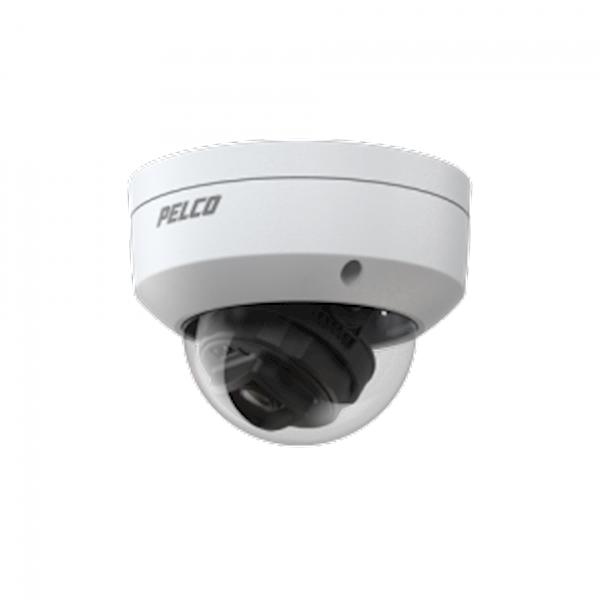

IJV522-1ERS, Sarix Value Mini Dome 5MP, 2,8mm
Belangrijke kenmerken
  • Uitstekende low light performance
  • True Wide Dynamic Range
  • 30 fps @ 1080p, 20 FPS @ 5 MP
  • Built-in IR illumination up to 30 M
  • H.265 and H.264 encoding with Pelco Smart Compression
  • l IP66 en IK10 (vandaal proof)
  • Ingebouwde MicroSD / SDHC / SDXC Card Slot On-board Storage
Pelco Sarix Value Mini Dome 5MP, 2,8mm
Beeld Sensor
  • 1/2.9" Progressive CMOS (IJV223-1ERS); 1/2.7" Progressive CMOS
  • (IJV522-1ERS)
  • Maximum Resolution 1920x1080 (2MP) (IJV223-1ERS); 2560x1920 (5MP) (IJV522-1ERS)
Lens Type
  • Fixed-focal
  • Focal Length f = 3.6 mm (IJV223-1ERS); f = 2.8 mm (IJV522-1ERS)
  • Aperture F2.0
  • Iris Type Fixed iris
  • Field of View IJV223-1ERS
  • 81° (Horizontal)
  • 44° (Vertical)
  • 95° (Diagonal)
  • IJV522-1ERS
  • 103° (Horizontal)
  • 76° (Vertical)
  • 134°(Diagonal)
  • Shutter Time 1/5 sec. to 1/32,000 sec.
  • Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
  • Day/Night Yes with removable IR cut filter
  • IR Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR technology
  • Minimum Illumination 0.07 lux Color (IJV223-1ERS); 0.2 lux Color (IJV522-1ERS)
  • Pan Range 350° (IJV223-1ERS); 353° (IJV223-1ERS)
  • Tilt Range 75°
  • Rotation Range 350°
  • Pan/Tilt/Zoom Functionalities Digital PTZ: 48x digital zoom
  • Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to
  • network-attached storage (NAS)
  • C5039S-A | 06/29/21 3
  • Sarix Value® Series IR Environmental Mini Dome Cameras (IJV223-1ERS, IJV522-1ERS)
Video
  • Video Compression H.265, H.264, MJPEG
  • Maximum Frame Rate 30 fps @ 1920x1080 (IJV223-1ERS); 20 fps @ 2560x1920 (IJV522-1ERS)
  • Maximum Streams 3 video streams (Up to 8 configurable profiles)
  • S/N Ratio 50 dB
  • Video Streaming Adjustable resolution, quality and bit rate control, Pelco Smart Compression Image
  • Settings General settings: video title and time stamp overlay, video orientation
  • (flip,mirror, rotation), day/night settings
  • Illuminators: illuminators, Adaptive IR;
  • Image settings: white balance, image adjustment (brightness, contrast,saturation, sharpness, gamma curve)
  • defog, 3DNR
  • Exposure: BLC, HLC, exposure control (exposure level, exposure time
  • gain control, AE speed adjustment, WDR; Privacy mask; Scheduled profile
Network
  • Users Live viewing for up to 10 clients
  • Security Access list, digest authentication, HTTPS, IEEE 802.1x
  • password protection, signed firmware, user access log, user account management
  • Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP,
  • HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP),
  • RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
  • Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • ONVIF Profile G, S, T supported, specification available at www.onvif.org
Cybersecurity

Sarix Value Series cameras implement several cybersecurity measures to protect device access as well
as data transport including credential setup for device access, authentication, HTTPs using TLS1.2, AES
encryption with 256 bit keys, digital signature for firmware upload, denial of access to shell, 802.1X,
camera firewall with whitelist/blacklist address support, 2048 RSA key pairs, X.509 v3 digital certificates
with SHA256 signature hash.
C5039S-A | 06/29/21 4
Sarix Value® Series IR Environmental Mini Dome Cameras (IJV223-1ERS, IJV522-
1ERS)

Alarm and Event
  • Event Trigger Camera tampering detection
  • manual trigger, motion detection
  • periodical trigger, recording notification
  • SD card life expectancy, system boot
  • Event Action Event notification via email, HTTP, FTP, NAS server, SD card
  • push notification file upload via email
General
  • Connectors RJ-45 cable connector f or 10/100Mpbs Network/PoE connection
  • Power Input IEEE 802.3af PoE Class 2
  • Power Consumption Max. 6.49 W/3.69 W (IR on/off)
  • Dimensions ø 117.2 x 89.60 mm
  • Weight 540 g
  • Body Construction Powder coated aluminum (RAL 9003), lower dome bubble polycarbonate
  • Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
  • Working Temperature:-30°C ~ 60°C (-22°F ~ 140°F)
  • Humidity 90%
System Requirements
  • Operating System Microsoft Windows 10/8/7
  • Web Browser Chrome, Firefox, Edge
  • Other Players VLC
Included Accessories
  • Others Quick Start Guide, alignment sticker, screw pack, cable gland
Models
  • Resolution Model Number Lens Description
  • 2 MP IJV223-1ERS 3.6 mm Sarix Value Environmental IR Micro Dome
  • 5 MP IJV522-1ERS 2.8 mm Sarix Value Environmental IR Micro Dome
