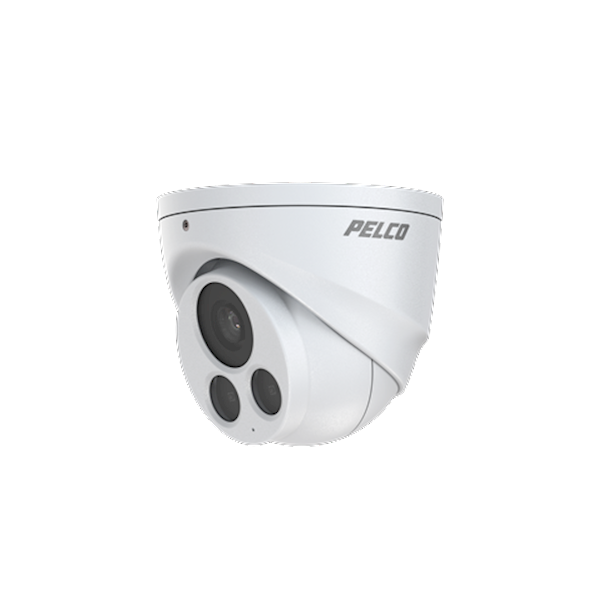

Pelco Sarix Value Turret 2MP, 2,8mm
Beeld Sensor
- 1/2.9" Progressive CMOS (IFV222-1ERS); 1/2.7" Progressive CMOS
- (IFV523-1ERS)
- Maximum Resolution 1920x1080 (2MP) (IFV222-1ERS); 2560x1920 (5MP) (IFV523-1ERS)
Lens Type
- Fixed-focal
- Focal Length 2.8 mm (IFV222-1ERS); 3.6 mm (IFV523-1ERS)
- Aperture F2.0
- Iris Type Fixed iris
- Field of View IFV222-1ERS
- 109° (Horizontal)
- 59° (Vertical)
- 129° (Diagonal)
- IFV523-1ERS
- 76° (Horizontal)
- 59° (Vertical)
- 100° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
- Day/Night Yes with removable IR cut filter
- IR Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR
technology
- Minimum Illumination 0.07 lux Color (IFV222-1ERS); 0.2 lux Color (IFV523-1ERS)
- Pan Range 360°
- Tilt Range 70°
- Rotation Range 360°
- C5042S-A | 06/08/21 3
- Sarix Value® Series IR Environmental Fixed Turret Cameras (IFV222-1ERS,
- IFV523-1ERS)
camera solutions
- Pan/Tilt/Zoom Functionalities Digital PTZ: 48x digital zoom
- Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 1920x1080 (IFV222-1ERS); 20 fps @ 2560x1920 (IFV523-1ERS)
- Maximum Streams 3 video streams (Up to 8 configurable profiles)
- S/N Ratio 50 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Pelco Smart Compression
- Image Settings General settings: video title and time stamp overlay, video orientation
- (flip, mirror, rotation), day/night settings
- Illuminators: illuminators, Adaptive IR
- Image settings: white balance, image adjustment (brightness, contrast
- saturation, sharpness, gamma curve), defog, 3DNR
- Exposure: BLC, HLC, exposure control (exposure level, exposure time
- gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile
Audio
- Audio Capability One-way Audio
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone
- Effective Range 5 meters
Network
- Users Live viewing for up to 10 clients
- Security Access list, digest authentication, HTTPS, IEEE 802.1x
- password protection, signed firmware, user access log, user account management
- C5042S-A | 06/08/21 4
- Sarix Value® Series IR Environmental Fixed Turret Cameras (IFV222-1ERS,IFV523-1ERS)
- Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP,
- HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP),
- RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- standard CAT5e and CAT6 cables which are compliant with the 3P/ETL standard
- ONVIF Profile G, S, T supported, specification available at www.onvif.org
Alarm and Event
- Event Trigger Camera tampering detection
- audio detection, manual trigger, motion
- detection, periodical trigger, recording notification, SD card life expectancy
- system boot
- Event Action Event notification via audio clip (IFV222-1ERS only), email, HTTP, FTP, NAS server
- SD card, push notification file upload via email
General
- Connectors RJ-45 cable connector f or 10/100Mpbs Network/PoE connection
- Power Input IEEE 802.3af PoE Class 2
- Power Consumption Max. 6 W/3.31 W (IR on/off)
- Dimensions ø 105 x 82.5 mm
- Weight 475 g
- Body Construction Powder coated aluminum (RAL 9003)
- Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
- Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
- Humidity 90%
System Requirements
- Operating System Microsoft Windows 10/8/7
- Web Browser Chrome, Firefox, Edge
- Other Players VLC
Included Accessories
- Others Quick Start Guide, alignment sticker, screw pack, cable gland
Models
- Resolution Model Number Lens Description
- 2 MP IFV222-1ERS 2.8 mm Sarix Value Environmental IR Fixed Turret
- 5 MP IFV523-1ERS 3.6 mm Sarix Value Environmental IR Fixed Turret
