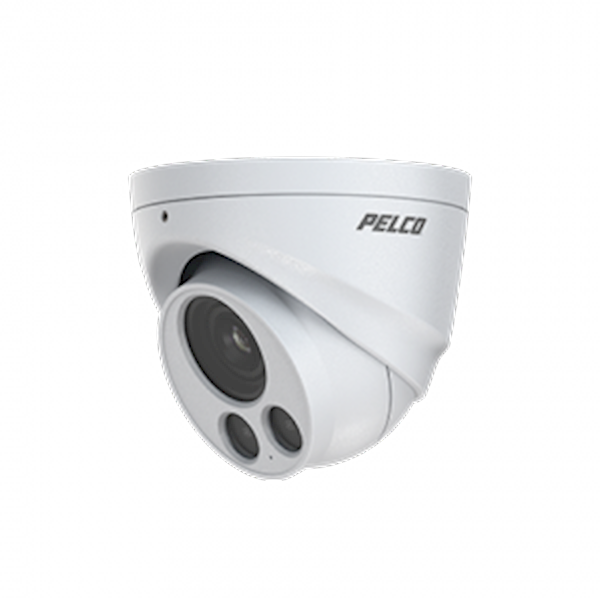

Pelco Sarix Value Turret Dome 5MP, Varifocal 3-9mm
Beeld Sensor
- 1/2.7" Progressive CMOS
- Maximum Resolution 2560x1920 (5MP)
Lens Type
- Motorized, Vari-focal, Remote Focus
- Focal Length f = 3.4 ~ 9.4 mm
- Aperture F1.4 ~ F2.8
- Iris Type Fixed iris
- Field of View 30° ~ 88° (Horizontal)
- 23° ~ 65° (Vertical)
- 38° ~ 115°(Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
- Day/Night Yes with removable IR cut filter
- IR Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR technology
- Minimum Illumination 0.2 lux Color
- Pan Range 360°
- Tilt Range 70°
- Rotation Range 360°
- Pan/Tilt/Zoom Functionalities Digital PTZ: 48x digital zoom
- Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to
- network-attached storage (NAS)
- C5041S-A | 06/08/21 3
- Sarix Value® Series IR Environmental Turret Camera (ITV529-1ERS
Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 20 fps @ 2560x1920
- Maximum Streams 3 video streams (Up to 8 configurable profiles)
- S/N Ratio 50 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Pelco Smart Compression
- Image Settings General settings: video title and time stamp overlay, video orientation
- (flip,mirror, rotation), day/night settings
- Illuminators: illuminators, Adaptive IR;
- Image settings: white balance, image adjustment
- (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
- Exposure: BLC, HLC, exposure control (exposure level, exposure time
- gain control, AE speed adjustment, WDR; Privacy mask; Scheduled profile
Audio
- Audio Capability One-way Audio
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone
- Effective Range 5 meters
Network
- Users Live viewing for up to 10 clients
- Security Access list, digest authentication, HTTPS, IEEE 802.1x
- password protection, signed firmware, user access log, user account management
- Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP,
- HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP),
- RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Profile G, S, T supported, specification available at www.onvif.org
- C5041S-A | 06/08/21 4
- Sarix Value® Series IR Environmental Turret Camera (ITV529-1ERS)
Cybersecurity
Sarix Value Series cameras implement several cybersecurity measures to protect device access as well
as data transport including credential setup for device access, authentication, HTTPs using TLS1.2, AES
encryption with 256 bit keys, digital signature for firmware upload, denial of access to shell, 802.1X,
camera firewall with whitelist/blacklist address support, 2048 RSA key pairs, X.509 v3 digital certificates
with SHA256 signature hash.
Alarm and Event
- Event Trigger Camera tampering detection
- audio detection, manual trigger, motion detection
- periodical trigger, recording notification, SD card life expectancy
- system boot
- Event Action Event notification via email, HTTP, FTP, NAS server, SD card
- push notification file upload via email
General
- Connectors RJ-45 cable connector f or 10/100Mpbs Network/PoE connection
- Power Input IEEE 802.3af PoE Class 3
- Power Consumption Max. 9.8 W/6.29 W (IR on/off)
- Dimensions ø 120 x 90.5 mm
- Weight 625 g
- Body Construction Powder coated aluminum (RAL 9003)
- Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
- Working Temperature:-30°C ~ 60°C (-22°F ~ 140°F)
- Humidity 90%
System Requirements
- Operating System Microsoft Windows 10/8/7
- Web Browser Chrome, Firefox, Edge
- Other Players VLC
Included Accessories
- Others Quick Start Guide, alignment sticker, screw pack, cable gland
- C5041S-A | 06/08/21 5
- Sarix Value® Series IR Environmental Turret Camera (ITV529-1ERS)
- Product Specification, camera solutions
Models
- Resolution Model Number Lens Description
- 5 MP ITV529-1ERS 3 ~ 9 mm Sarix Value Environmental IR
- Turret
