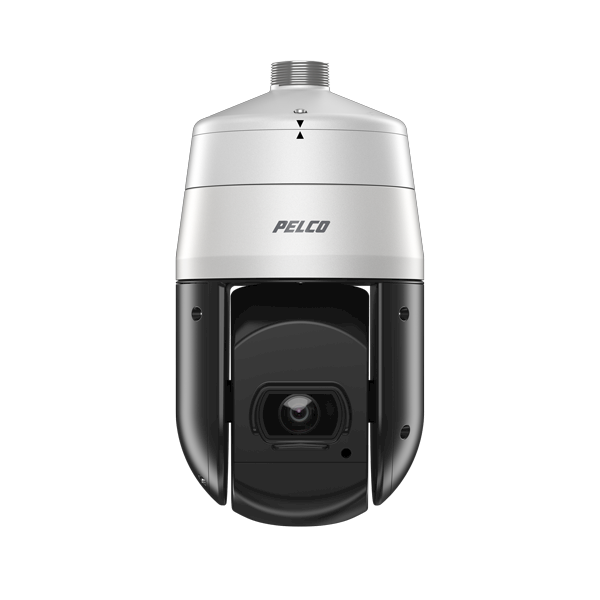

Pelco Spectra Enh7 IR Look-Up PTZ Outdoor 2MP Pendant
Technische specificaties
Camera
Sensor type Progressive 1/2.8-inch type Exmor CMOS sensor
Optical zoom 30X
Digital zoom 12X
Maximum resolution 1920 x 1080
Lens f/1.6 ~ f/4.7, focal length 4.3 mm (wide) ~ 129.0 mm (tele)
Horizontal angle of view 59.8° wide - 2.3° tele
Aspect ratio 16:9
Day/night capabilities Yes
Shutter range 1/1 ~ 1/10,000 sec
White Balance Range 2,000º to 10,000ºK
Signal-to-noise ratio 50dB
IR cut filter Yes
Wide Dynamic Range 130 dB maximum; 120 dB per IEC62676
Iris control Auto iris with manual override
Backlight compensation Yes
Automatic gain control Yes
Active noise filtering 3D noise filtering
Electronic Image Stabilization (EIS) Yes
Bit rate control Constrained variable bit rate (CVBR) and constant bit rate
(CBR)
Video snapshot JPEG capture at the same resolution as the highest stream
configured
Window blanking 16 configurable windows
Video overlay Camera name, time, date, and customizable text with
multiple supported languages. Embedding of custom images
and logos supported.
Flicker correction Auto
Network
Supported Protocols TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP,
RTSP, NTP, IPv4, IPv6*, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, TLS,
SMTP, FTP, 802.1x (EAP), and NTCIP 1205
Unicast Up to 20 simultaneous users depending on resolution settings (2 guaranteed streams)
Multicast Unlimited users
Security Access Password protected
Software Interface Web browser view and setup
Pelco System Integration VideoXpert™
Endura™ 2.0 (or later)
Digital Sentry™ 7.3 (or later)
Open API Pelco API or ONVIF Profile S, G, and T
Mobile Application Integrated to Pelco Mobile App
Video Motion Detection Simple motion detection and camera sabotage
Local Storage SD card slot with support for Micro SD, SDHC or SDXC cards, up to 2 TB;
Capture 1–5–10 second video clips on camera sabotage, motion detection, or
alarm input; record video continuously in the case of network outage with
option to overwrite; access video through FTP protocol and ONVIF Profile G
Minimum System Requirements
Processor Intel® Core™ i3 processor, 2.4 GHz
Operating System Microsoft® Windows® 7 (32- and 64-bit), or DirectX®11, Windows XP Service
Pack 3 with DirectX 9.0c; or Mac® OS X 10.4 (or later)
Memory 4 GB RAM
Network Interface Card 100 megabits (or greater)
Monitor Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
Web Browser Internet Explorer® 8.0 (or later) or Firefox 3.5 (or later); Internet Explorer 8.0 (or
later) is recommended for configuring analytics
General
Construction Aluminum, thermo plastic
Cable Entry (back box, pendant)
Through 1.5-inch NPT pendant mount
Unit Weight (2MP, 30X) 7.65 kg (16.9 lbs)
Shipping Weight (2MP, 30X) 8.85 kg (19.5 lbs)
Effective Projected Area (EPA) 0.071 square meters (110 square inches)
Effective Projected Area with
IWM Mount
0.103 square meters (160 square inches)
Alarm
Unsupervised Detects open or closed alarm state
Supervised Detects open and short alarm state with external 1-kohm resistor
Inputs (4) 3.5 VDC maximum, 3.5 mA maximum
Relay outputs (2) ±32 VDC maximum, 150 mA maximum
