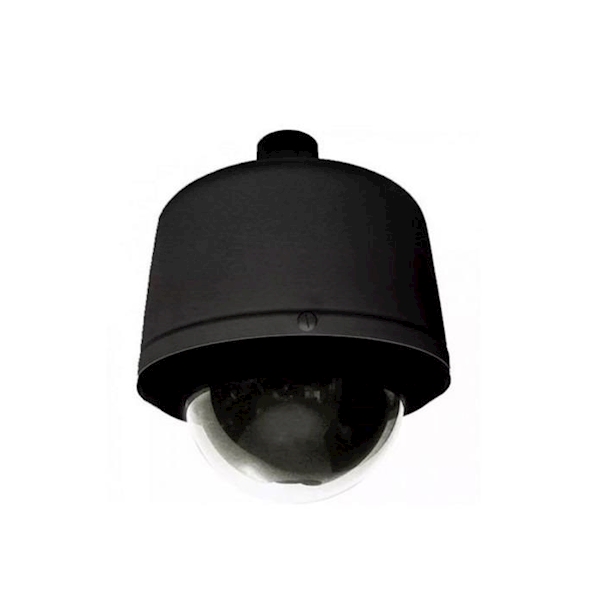

Pelco Spectra Enh7 PTZ Outdoor 8MP, Pendant, Smoked Bubble,
Sensor Type
- Progressive, 1/2.8-inch Type Exmor CMOS Sensor Progressive, 1/1.8-inch CMOS Sensor
- Optical Zoom 30X 18X
- Digital Zoom 12X 12X
- Maximum Resolution 1920 x 1080 3840 x 2160
- Lens f/1.6 ~ f/4.7, focal length 4.3 mm (wide) ~ 129.0 mm (tele) f/1.5 ~ f/3.4, focal length 6.36 mm (wide) ~ 138.5 mm (tele)
- Horizontal Angle of View 59.8° wide - 2.3° tele 57.9 wide - 3.0 tele
- Aspect Ratio 16:9 16:9
Light Sensitivity
- Color (33 ms) 0.02 lux (Color) 0.10 lux
- Color (250 ms) 0.0025 lux (Color) 0.0125 lux
- Mono (33 ms) 0.013 lux (Mono) 0.066 lux
- Mono (250 ms) 0.0016 lux (Mono) 0.0085 lux
- Note: Sensitivity in lux for 90% reflectance, f/1.6 (wide angle), 50 dB gain at 30 IRE (30% of signal level) with Sensitivity
- Boost OFF; 4X improvement to sensitivity with Sensitivity Boost ON
- Day/Night Capabilities Yes Yes
- Shutter Range 1/1 ~ 1/10,000 sec 1/10,000 ~ 1 sec
- Signal-to-Noise Ratio >50dB >50dB
- IR Cut Filter Yes Yes
- Wide Dynamic Range Up to 130 dB maximum; 120 dB per IEC 62676-5 Up to 130 dB maximum; 120 dB per IEC 62676-5
- Iris Control Auto iris with manual override Auto iris with manual override
- Backlight Compensation Yes Yes
- Automatic Gain Control Yes Yes
- Active Noise Filtering 3D Noise Filtering 3D Noise Filtering
- Electronic Image Stabilization (EIS) Yes Yes
- Bit Rate Control Constrained variable bit rate (CVBR) and constant bit rate (CBR)
- Video Snapshot JPEG capture at the same resolution as the highest stream configured
- Window Blanking 16 configurable Windows
Video Overlay
- Camera name, time, date, and customizable text with multiple supported languages. Embedding of custom images and
- logos supporte
