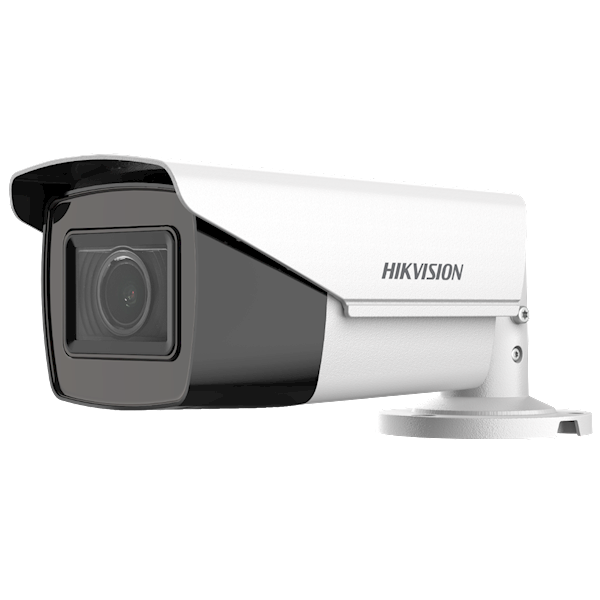

5 MP Motorized Varifocal Bullet Camera
Camera
- Image Sensor5 MP CMOS
- Signal SystemPAL/NTSC
- Resolutie2560 (H) × 1944 (V)
- Frame Rate
TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25fps
CVI: 4 M @ 30 fps, 4 M @ 25 fps
CVBS: PAL/NTSC
- Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens2.7 mm to 13.5 mm motorized varifocal lens
- Field Of Viewhorizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
- Lens MountΦ14
- Day & NightIR Cut Filter
- WDR (Wide Dynamic Range)Digital WDR
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Day/Night ModeAuto/Color/BW (Black and White)
- Image ModeSTD/HIGH-SAT
- AGCYes
- White BalanceAuto/Manual
- AE (Auto Exposure) ModeBLC;HLC;Global;DWDR
- Noise Reduction2D DNR
- LanguageEnglish
- FunctionSharpness;Brightness;Smart IR
Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
General
- IR RangeUp to 40 m
- Operating Conditions-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Stroomvoorziening
- 12 VDC ±15%, 24 VAC±15%
- Consumption Max 8.8 W
- Beschermingsniveau IP67
- MateriaalFront cover: Metal, Main body: Plastic
- Communicatie HIKVISION-C
- Dimension 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10.04")
- Approx. 682 g (1.50 lb.)
