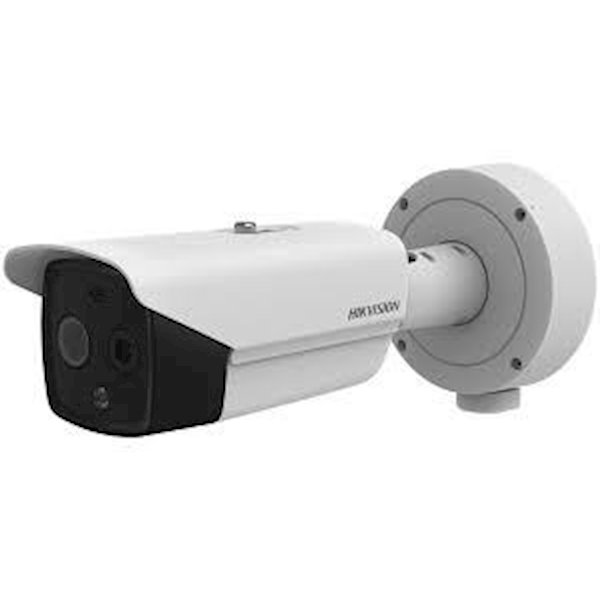

DS-2TD2617-10/PAI, Hikvision DeepinView Thermisch bi-spectrum bullet, 10mm

DS-2TD2617-10/PAI, Hikvision DeepinView Thermisch bi-spectrum bullet, 10mm

  • -
    +
  • Belangrijkste kenmerken

    • Zeer gevoelige thermische module met een resolutie van 160 x 120
    • NETD is minder dan 40 mk (@ 25 ° C, F # = 1.1)
    • Ondersteunt contrastaanpassing
    • Toonaangevende technologie voor thermische beeldverwerking: Adaptive AGC, DDE, 3D DNR
    • Tot 15 paletten met aanpasbare kleur
    • Krachtige functies voor gedragsanalyse, gebaseerd op deep learning-algoritme: lijnoverschrijding, inbraak, in- en uitgang van de regio
    • Betrouwbaar alarm voor temperatuurafwijking
    • Geavanceerd algoritme voor branddetectie
    • Hoogwaardige optische module met een resolutie van 4 MP
    • Bi-spectrum beeldfusie, beeld-in-beeld preview
    • Flitslicht en audio-alarm
    Thermisch bi-spectrum bullet, 9.7mm, Strobe/Audio
    Thermal Module
    Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
    Max. Resolution 160 × 120 (the resolution of output image is 320 × 240)
    Pixel Interval 17μm
    Response Waveband 8 μm to 14 μm
    NETD (Noise Equivalent Temperature Difference)
    ≤ 40 mk (@25 °C,F# = 1.1)
    Lens (Focal Length) 9.7 mm
    IFOV 2.74 mrad
    Field of View 15.96° × 12° (H × V)
    Min. Focusing Distance 1.2 m
    Aperture F 1.1
    Optical Module
    Max. Image Resolution 2688 × 1520
    Image Sensor 1/2.7" Progressive Scan CMOS
    Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
    Shutter Speed 1 s to 1/100,000 s
    Lens (Focal Length) 8 mm
    Field of View 39.42° × 22.14° (H × V)
    WDR 120 dB
    Day & Night IR cut filter with auto switch
    Image Function
    Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
    Picture in Picture Display partial image of thermal channel on the full screen of optical channel
    Smart Function
    VCA (Video Content Analysis)
    4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8
    VCA rules in total.
    Temperature Measurement
    3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
    line).
    Temperature Range -20 °C to + 150 °C (-4 °F to + 302°F)
    Temperature Accuracy ± 8 °C (± 14.4 °F)
    Fire Detection Dynamic fire point detection, up to 10 fire points detectable.
    Infrared
    IR Distance Up to 40 m
    IR Intensity and Angle Automatically adjusted
    Network
    Main Stream
    Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

    Sub-stream
    Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)
    60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
    Thermal: 25 fps(704 × 576, 352 × 288, 320 × 240)
    Video Compression H.265/H.264/MJPEG
    Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
    Protocols
    IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
    RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    Simultaneous Live View Up to 20
    User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
    Security Measures
    User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
    access control, IP address filtering
    interface
    Alarm Input 1-ch inputs (0-5 VDC)
    Alarm Output 1-ch relay outputs, alarm response actions configurable
    Alarm Action
    SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white
    light alarm
    Audio Input
    1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ
    ± 10%
    Audio Output Linear level, impedance: 600 Ω
    Reset 1, Reset Button
    Communication Interface 1, RJ45 10M/100M self-adaptive Ethernet interface.
    SD Memory Card
    Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256 GB)
    Supports manual/alarm recording
    Application Programming
    Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform
    ONVIF (Profile S, Profile G, Profile T)
    Client iVMS-4200, Hik-Connect
    Web Browser IE 8-11, Chrome 41-44, Firefox 30-51
    General
    Menu language
    32 languages
    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
    French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
    Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
    Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    Power 12 VDC± 25%, two-core terminal block
    PoE (802.3af, class 3)
    Power Consumption
    9 VDC to 15 VDC: 0.65A, max. 7.5 W
    PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8.0 W
    Working Temperature/Humidity
    Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
    Humidity: 95% or less
    Protection Level
    IP66 Standard
    TVS 6000V lightning protection, surge protection, voltage transient protection
    Dimensions 354 mm × 144.1 mm × 156.7 mm (13.94" × 5.67" × 6.17")
    Weight Approx. 1.76 kg (3.88 lb)
