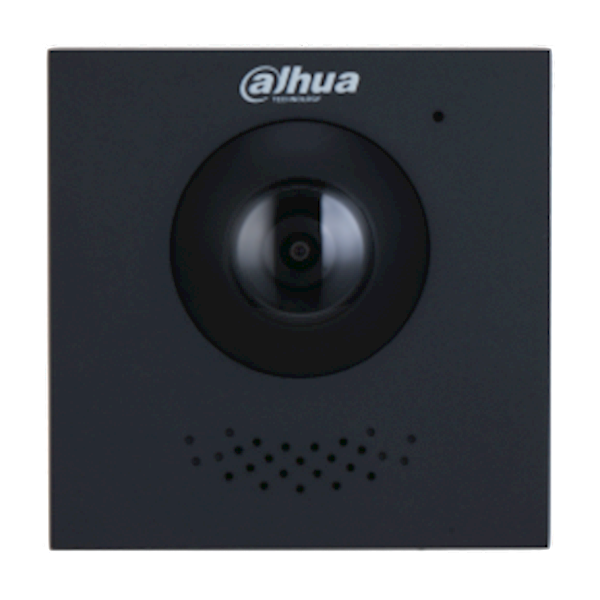

2Mp Modular Apartment Door Station
System
- Main Processor Embedded processor
- Operating System Embedded Linux operation system
- Button Type Mechanical
- Interoperability ONVIF; CGI
- Network Protocol SIP; P2P; IPv4; UPnP; DNS; RTSP; RTP; TCP; UDP
Basic
- Camera 1/2.5" 2MP CMOS low illumination HD colorful fisheye camera
- Field of View Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
- Focal Length 1.9 mm
- WDR 120 dB
- Noise Reduction 3D DNR
- Video Compression H.265
Video Resolution
- 50 Hz:
- Main stream (720P@25 fps), sub stream (1080P@25 fps)
- 60 Hz:
- Main stream (720P@25 fps), sub stream (1080P@25 fps)
- Video Frame Rate 25 fps
- Video Bit Rate 256 Kbps to 4 Mbps
- Light Compensation Auto IR
- Day/Night Auto (ICR)
- Audio Compression G.711a; G.711u; PCM
- VTO4 Series | DHI-VTO4202FB-P-S2
- Audio Input 1 channel
- Audio Output Built-in speaker
- Audio Mode two-way voice communication
- Audio Enhancement Echo suppression/digital noise reduction
- Audio Bit Rate 16 KHz, 16 Bit
- Status Indicator Light 3
Port
- RS485 Port 1
- Alarm Output 1
- Power Output 1-ch 12 VDC 100 mA
- Exit Button 1
- Door Status Detection 1
- Lock Control 1
- Network Port One RJ45 10 M/100 M network port
General
- Appearance color Black
- Power Supply
- Dahua 2-wire switch (max. power supply distance 50 m)
- DC 48V 1A
- Standard PoE
- Power Adapter Optional
- Installation Flush/surface mount
