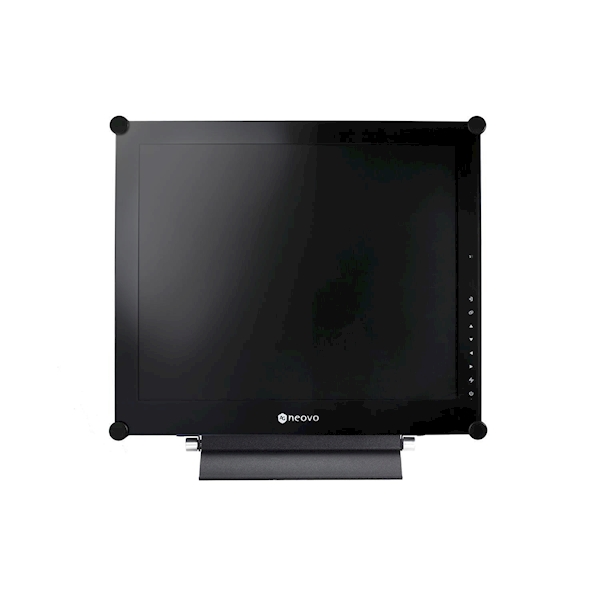

19" beeldscherm, 1280 x 1024 resolutie, Advanced Image Platf
| Panel |
Panel Type: |
LED-Backlit TFT LCD (TN Technology) |
| |
Panel Size: |
19.0" |
| |
Max. Resolution: |
SXGA 1280 x 1024 |
| |
Pixel Pitch: |
0.294 mm |
| |
Brightness: |
250 cd/m² |
| |
Contrast Ratio: |
20,000,000:1 (DCR) |
| |
Viewing Angle (H/V): |
170°/160° |
| |
Display Colour: |
16.7M |
| |
Response Time: |
3 ms |
| Frequency |
Frequency (H): |
24 kHz-81 kHz |
| |
Frequency (V): |
50 Hz-75 Hz |
| Signal Input |
DisplayPort: |
x 1 |
| |
HDMI: |
1.4 x 1 |
| |
DVI: |
24-Pin DVI-D |
| |
VGA: |
15-Pin D-Sub x 1 |
| |
Composite: |
BNC x 2 |
| |
S-Video: |
4-Pin mini DIN x 1 |
| Signal Output |
Composite: |
BNC x 2 |
| External Control |
RS232 In: |
2.5 mm Phone Jack |
| Other Connectivity |
USB: |
2.0 x 1 (Service Port) |
| Audio |
Audio In: |
Stereo Audio Jack (3.5 mm), Stereo Audio Jack (RCA) |
| |
Audio Out: |
Stereo Audio Jack (RCA) |
| |
Internal Speakers: |
2W x 2 |
| |
Power Supply: |
External |
| |
Power Requirements: |
DC 12V, 1.67A |
| |
On Mode: |
13W (On) |
| |
Stand-by Mode: |
< 0.5W |
| |
Off Mode: |
< 0.5W |
| |
Thickness: |
3.0 mm (0.12") |
| |
Reflection Rate: |
< 1% |
| |
Transmission Rate: |
> 97% |
| |
Hardness: |
> 9H |
| Operating Conditions |
Temperature: |
0°C-40°C (32°F-104°F) |
| |
Humidity: |
10%-90% (non-condensing) |
| Storage Conditions |
Temperature: |
-20°C-60°C (-4°F-140°F) |
| |
Humidity: |
5%-95% (non-condensing) |
| Mounting |
VESA FPMPMI: |
Yes (100 x 100 mm & 75 x 75 mm) |
| Stand |
Tilt: |
0° to 20° |
| Security |
Kensington Security Slot: |
Yes |
| Dimensions |
Product with Base (W x H x D): |
445.4 x 420.2 x 175.0 mm (17.5" x 16.5" x 6.9") |
| |
Product w/o Base (W x H x D): |
445.4 x 383.9 x 64.5 mm (17.5" x 15.1" x 2.5") |
| |
Packaging (W x H x D): |
535.0 x 512.0 x 225.0 mm (21.1" x 20.2" x 8.9") |
| Weight |
Product w/o Base: |
6.2 kg (13.7 lb) |
| |
Product with Base: |
7.0 kg (15.4 lb) |
| |
Packaging: |
8.7 kg (19.2 lb) |
| Regulation Approval |
Certifications & Compliance: |
CB, CE, FCC,BSMI, RoHS, WEEE, REACH, EAC |
| Accessories |
Supplied: |
Power Adaptor, Power Cord, VGA Cable, Audio Cable, Quick Start Guide, Warranty Card |
| Optional Accessories |
Ceiling Mount (Landscape only): |
CMP-01+WMK-03 |
| |
Wall Mount (Landscape only): |
WMA-01, WMK-01, WMK-03, PMK-01 |
| |
Desk mount (Landscape only): |
DMC-01, DMC-02D, DMS-01D, DMS-01Q, ES-02 |
