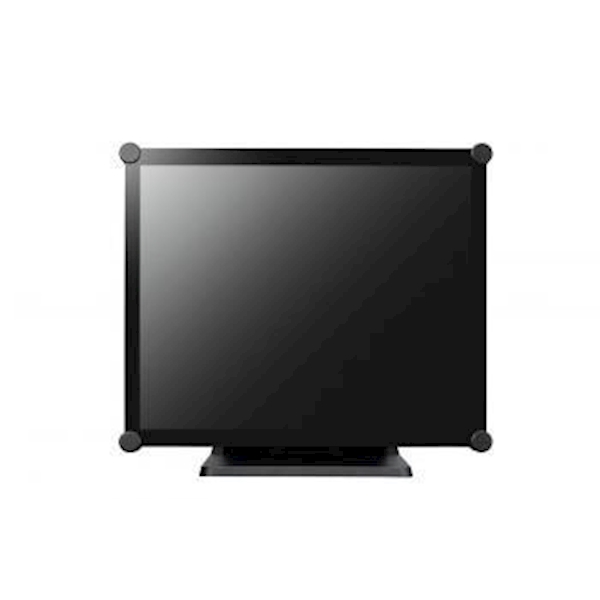

17 INCH TOUCHSCREEN MONITOR
| Panel |
Panel Type: |
LED-Backlit TFT LCD (VA Technology) |
| |
Panel Size: |
17.0" |
| |
Max. Resolution: |
SXGA 1280 x 1024 |
| |
Pixel Pitch: |
0.264 mm |
| |
Brightness: |
250 cd/m² |
| |
Contrast Ratio: |
1000:1 |
| |
Viewing Angle (H/V): |
170°/160° |
| |
Display Colour: |
16.7M |
| |
Response Time: |
3 ms |
| |
Surface Treatment: |
Anti-Glare Treatment (Haze 25%),3H Hard Coating |
| Frequency |
Frequency (H): |
31 kHz-80 kHz |
| |
Frequency (V): |
50 Hz-75 Hz |
| Signal Input |
DVI: |
24-Pin DVI-D |
| |
VGA: |
15-Pin D-Sub x 1 |
| External Control |
RJ11: |
Yes |
| Touch Screen |
Technology: |
Projective Capacitive |
| |
Positional Accuracy: |
± 2.5 mm |
| |
Panel Interface: |
USB (Type-B) |
| |
Multi-touch Plug & Play: |
10-point touch for Windows® 7?8?10 |
| |
Single Touch Support by Driver: |
Windows VISTA/XP/2000/CE/XP Embedded Mac OS |
| |
Multi-touch Support by Driver: |
Linux (Up to 5 points) Android 2.1 upward and 4.0 as well (Up to 10 points) |
| Power |
Power Requirements: |
DC 12V, 2.5A |
| |
On Mode: |
12W (On) |
| |
Standby Mode: |
< 2W |
| |
Off Mode: |
< 1W |
| Glass |
Thickness: |
3.1 mm (0.12") |
| |
Transmission Rate: |
> 90% |
| |
Hardness: |
> 7H |
| Operating Conditions |
Temperature: |
0°C-40°C (32°F-104°F) |
| |
Humidity: |
20%-80% (non-condensing) |
| Mounting |
VESA FPMPMI: |
Yes (100 x 100 mm) |
| Stand |
Tilt: |
-5° to 90° |
| Security |
Kensington Security Slot: |
Yes |
| Dimensions |
Product with Base (W x H x D): |
380.0 x 343.4 x 214.2 mm (15.0" x 13.5" x 8.4") |
| |
Product w/o Base (W x H x D): |
380.0 x 318.0 x 49.5 mm (15.0" x 12.5" x 2.0") |
| |
Packaging (W x H x D): |
450.0 x 423.0 x 277.0 mm (17.7" x 16.7" x 10.9") |
| Weight |
Product w/o Base: |
3.9 kg (8.6 lb) |
| |
Product with Base: |
5.8 kg (12.8 lb) |
| |
Packaging: |
8.0 kg (17.6 lb) |
| Regulation Approval |
Certifications & Compliance: |
CE, LVD, WEEE, RoHS, REACH, EAC |
| Accessories |
Supplied: |
Power Adaptor, Power Cord, VGA Cable, USB Cable, Warranty Card |
| Optional Accessories |
Wall Mount (Landscape only): |
WMK-01, WMK-03, PMK-01 |
| Power |
Power Supply: |
External |
| Storage Conditions |
Temperature: |
-20°C-60°C (-4°F-140°F) |
| |
Humidity: |
10%-90% (non-condensing) |
