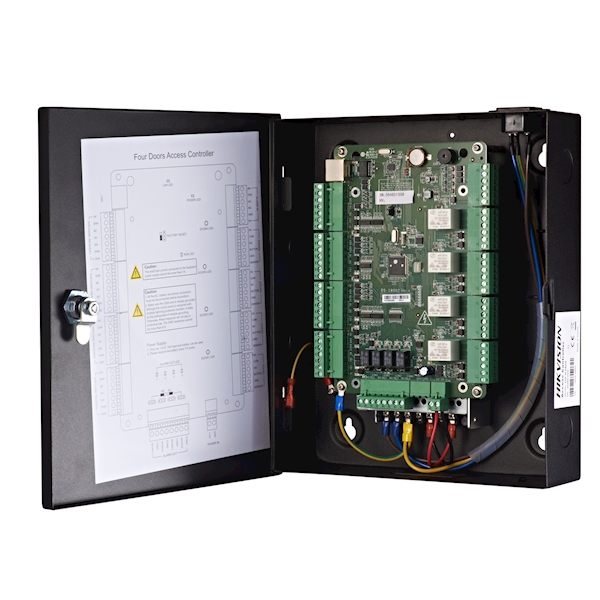

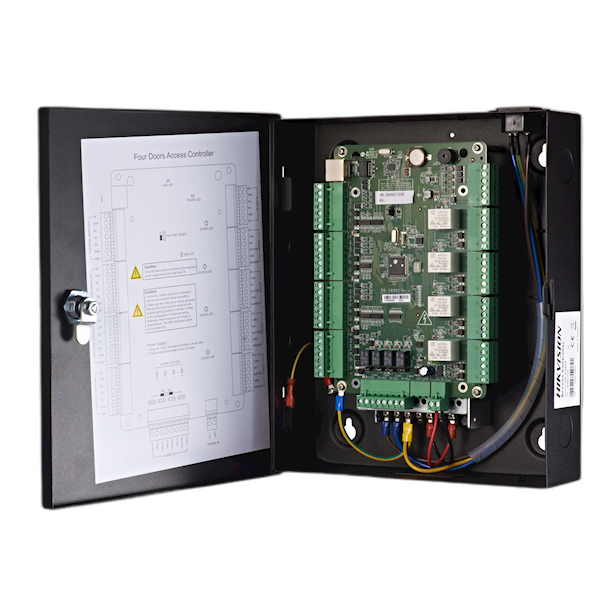

Deurcontroller 4 deuren, basis+
System Parameters
Processor: | 32-bit
Storage: | Storage for 10 thousands valid cards information and 50 thousands card swiping records
Device Interfaces
Uplink Communication Interface: | TCP/IP Network Interface and RS-485 Interface
Downlink Communication Interface: | Wiegand interface
Accessible Card Reader: | 4 Card Readers (Wiegand Interface) Connectable
Input Interface: | Door Magnetic×4,
Door Switch×4,
Case Input×4
Output Interface: | Door Switch Relay×4, Alarm Relay×4
General
Working Voltage: | DC 12V
Power Consumption: | ≤3.5W(without load)
LED Indicator: | Power Supply Status, Communication Status, Abnormal Status
Certification: | CE, FCC
Working Temperature : | -20°C to +65°C (-4°F to +149°F)
Working Humidity: | 10% to 90% (Non-Condensing)
Dimensions (L×W×H): | 285(L)mmx237(W)mmx69(H)mm
