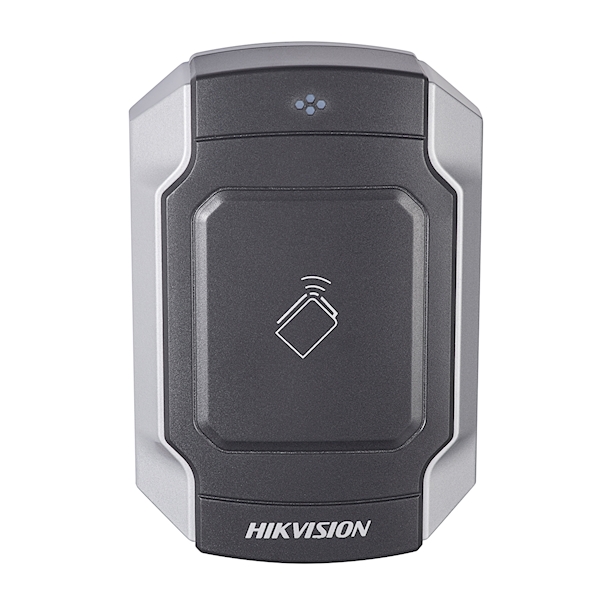

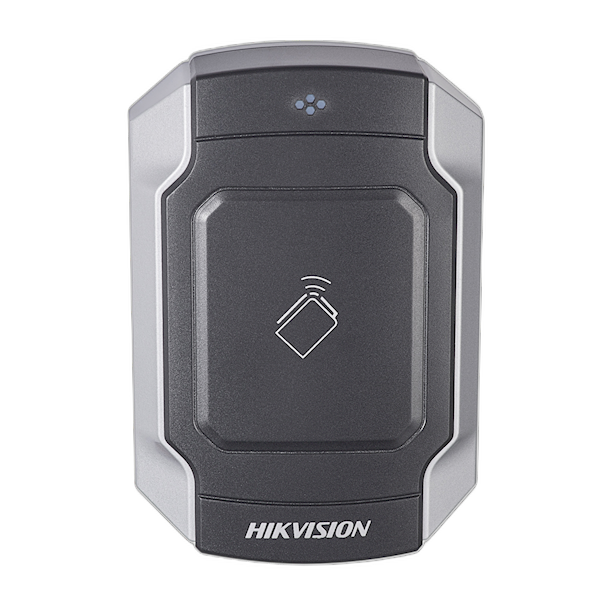

Hikvision Access control, kaartlezer robuust, MiFare
System Parameters
Processor: | 32-bit
Card Reading Distance: | 30 to 50mm (1.18 to 1.96")
Card Reading Frequency: | 13.56MHz
ID Settings: | Setting by the DIP Switch on the Main Board
General
Key Board: | No Keypad (DS-K1104M)
Keypad with 12 Keys (0 to 9, *, #) (DS-K1104MK)
Power Supply: | 12VDC
Working Current: | ≤500mA
Audio Alert: | Beeper
Power Consumption: | ≤6W
LED Indicator: | Power Indicator; Status LED Indicator
Working Temperature : | -40°C to +70°C (-40°F to +158°F)
Working Humidity: | 10% to 90% (Non-Condensing)
Dimensions (L×W×H): | 118×76×23mm (4.65×2.99×0.91")
Protection Level: | IP 65
Installation: | Applied for 86 & 120 Gang Box
Weight: | ≤ 0.52Kg
Certification: | CE, FCC
