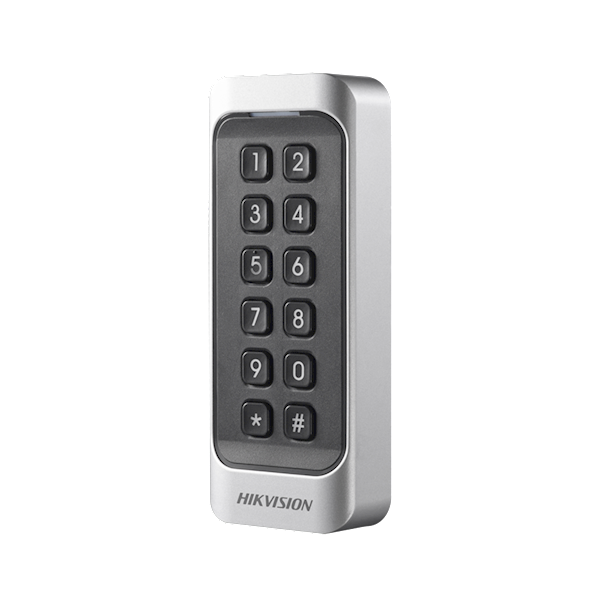

Kaartlezer smal, codetoetsen, MiFare
System
Interface
- TAMPERSupport
- RS-485Support
- WiegandSupport (set via DIP switch)
Authentication
- Card Reading Frequency13.56 MHz
- Card Reading Distance≤50 mm (≤1.97")
General
- IndicatorPower indicator, status indicator
- Power Supply12 VDC
- Power Consumption≤2 W
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working Humidity10% to 90% (Non Condensing)
- Protective LevelIP65
- Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
- InstallationWall Mounting with Screws; Do Not Support Gang Box
- KeypadKeypad with 12 Keys (0~9, *, #)
- BuzzerSupport
